Product Details:
Payment & Shipping Terms:
|
| Material: | Stainless Steel | Diameter: | 6.35mm -38.00mm |
|---|---|---|---|
| Hard Chrome Plating Thickness: | 0.008mm - 0.075mm | Industry: | Paper And Cardboard |
| High Light: | profiled metering rods,corrugated coating presses metering rods,6.35mm dia metering rods |
||
6.35mm – 38.00mm Diameter Profiled Metering Rods For Corrugated Coating Presses
Description:
Paper mills and converting mills use grooved metering rods to coat starches, pigments, adhesives, and other coatings onto paper, films, foils, cardboard, and other surfaces.
Application:
Sizer/Starch Presses
Corrugated Coating Presses
Adhesives for Labels, Tapes & Decals
Glues and Clays for Papers, Films & Foils
Pre-Coat, Base Coat & Top Coat
Hot Stamp Foils & Wax
Other Specialty & Custom Coating Applications
Parameter:
| Brand | HUATAO |
| Model | HT-14 |
| Material | Stainless Steel |
| Diameters | 6.35mm -38.00mm |
| Chrome plated rod length | Max 12m |
| Hard Chrome Plating Thickness | 0.008mm - 0.075mm |
Advantage:
Grooved rods are coated in either chrome or ceramic. They are used with low-viscosity media.
1. Optimum protection of roll covers.
2. Lower loading pressure,less braking,less wear,longer service life.
3. Reduced Costs - Reduce drying time and energy costs by increasing coating solids.
4. Longer Runs - Threads are engineered to stay cleaner and last longer.
5. Faster Setups - Loading pressure, wrap angles, and other operational variables do not have to be adjusted between rod changes.
6. Consistent Coating Coverage - Reduce or eliminate rod lines, streaks, and other coating defects.
7. Reduced Coating Consumption - Functional coatings can often achieve optimal performance properties with lower coat weights.
8. Less Operator Frustration - Machine operators are more efficient when they are using the highest quality consumable parts.

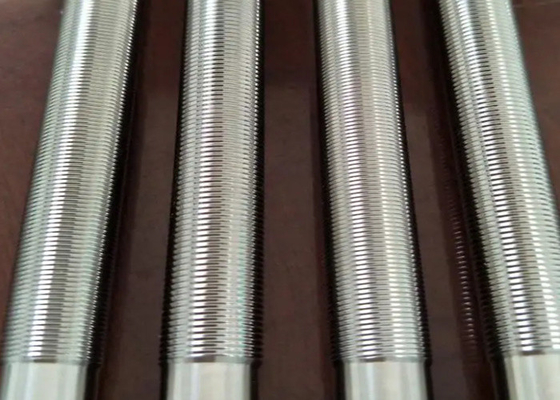

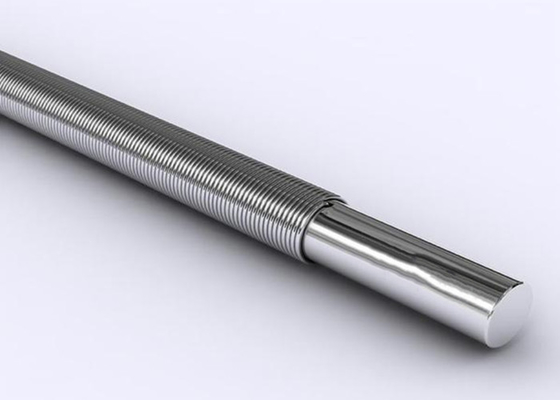

Detail Photo:
