Product Details:
Payment & Shipping Terms:
|
| Condition: | New | Diameter: | 100-600mm |
|---|---|---|---|
| Lentgh: | 100-4000mm | Flute: | A.C.B.E.F.G As Customer Request |
| Hardness: | ≥ HRC55° | Quenching Layer Depth: | 5-7mm |
| Highlight: | packing cardboard roll,pressure roll |
||

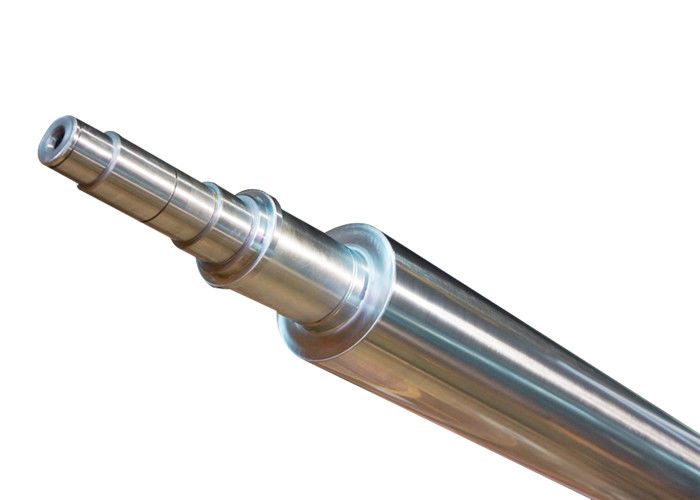

Tungsten Carbide Single Facer Corrugated Roll Products Description:
Tungsten Carbide Single Facer Corrugated Roll Used for carton box corrugator machine .The upper and lower corruagted( corrugating, flute) roller for single facer machine,
1. The special purpose of the corrugated roller 55CrMo alloy steel forgings
2. The basic medium frequency quenching of the corrugated roller >HRC59 above
3. Wear resistant tungsten carbide coating thickness 0.06-0.08 mm
4. The microhardness of WC coating >HV1250-1400
5. Combining strength >75MPa
6. Visible optical porosity <1%
7. The optimization of economic type design
8. The tooth surface fine grinding and polishing, surface roughness Ra≤1.6μm
Tungsten Carbide Single Facer Corrugated Roll Flute Type
| Flute Type | Flute | Teeth/300mm | Height of Flute |
| BE | UV | 66±3 | 1.9-2.1 |
| E | UV | 90±10 | 1.1-1.5 |
| F | UV | 124±10 | 0.7-0.8 |
| G | UV | 185±12 | 0.5-0.65 |
| N | UV | 200±15 | 0.4-0.5 |
| O | UV | 267 or design | 0.25-0.35 |
1.Packing : Use non-fumigation wooden box, it's convenient to customs clearance.Could save customers more time.
2.Delivery Time:Shipped in 60days after payment
