| Name: | Stock Preparation SS Stainless Steel Coarse Pressure Screen | Material: | Stainless Steel |
|---|---|---|---|
| Screen Area (m2): | 0.8-6 | Range Of The Screen Hole: | φ1.2-φ1.8mm |
| Range Of Screen Slot: | 0.10-1.25mm | Flow Rate: | 35-600L/s |
| Highlight: | paper making stock preparation,coarse pressure screen stock preparation,ss stock preparation in paper making |
||
Stock Preparation SS Stainless Steel Coarse Pressure Screen
Product Description
The Stock Preparation SS Stainless Steel Coarse Pressure Screen is under the rotating function of the drum sieve and rotating cylinder and centrifugation effect. The machine will separate the qualified pulp and non-qualified pulp. It consists of a cylinder, cylinder cover, sieve drum, rotary cylinder, base and transmission parts, etc.
Product Specification
| Type | HT-81 | HT-82 | HT-83 | HT-84 | HT-85 | HT-86 |
| Screen area | 0.8m2 | 1.5m2 | 2.5m2 | 3.5m2 | 4.5m2 | 6m2 |
| Screen consistency | %0.8-%2.0 | |||||
| Range of the screen hole | φ1.2-φ1.8mm | |||||
| Range of screen slot | 0.10mm-0.25mm | |||||
| Flow rate L/s | 35-80 | 60-140 | 110-250 | 150-340 | 200-450 | 280-660 |
| Power of motor | 30kw | 45kw | 55kw | 75kw | 90kw | 132kw |
Product features
1) Multiple rotor blades, no winding, high efficient and energy-saving rotary rotor.
2) Heavy impurities discharge pipe makes sure the screen basket runs safely.
3) Advanced & Durability structure, easy dis-assembly & assembly, low energy consumption, less fiber loss.
4) Easy to operate, fewer malfunctions for continuous working, less maintenance cost.
5) Automatic oil injection devices can reduce maintenance.
6) Seal water flow automatic detection alarm device makes sure the system runs safely.
7) Interlock system ensures the service life of the equipment.

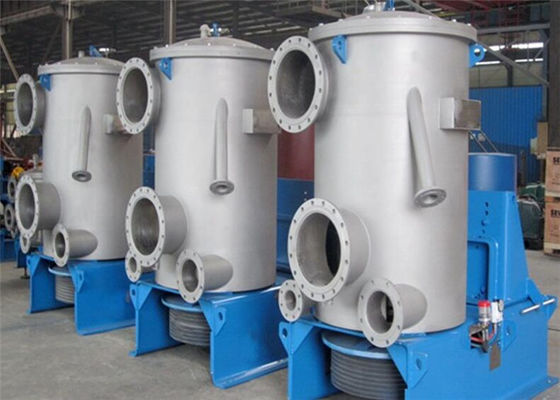

Product Photo
