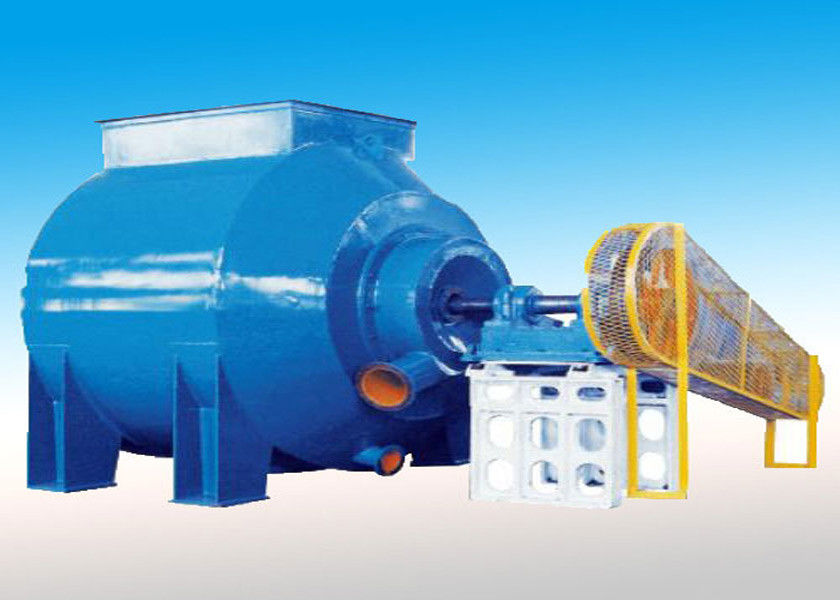

Stock Preparation Machine Horizontal Hydrapulper for paper mill
Application:
Used in paper industry for breaking pulp sheet,broke and waste paper, more for small and medium pulping line and slag pulp processing.
Features:
This equipment is fitted with P.S. vokes rotor, which can strengthen hydraulic cycle and fiber defiberizing and also perform continuous breaking with lower energy consumption.
Main Technical Parameters:
| Type | HT-13 | HT-14 | HT-15 | HT-16 | HT-17 | HT-18 | HT-19 | HT-20 | ||
| Nominal volume: m3 | 1 | 2.5 | 5 | 10 | 15 | 20 | 25 | 30 | ||
| Capacity of product : t/d |
ONP & LOCC | Φ6 - Φ10 | 10-13 | 25-30 | 45-55 | 85-100 | 110-130 | 140-160 | 170-190 | 190-210 |
| Φ10 - Φ16 | 13-16 | 30-35 | 55-60 | 100-120 | 130-150 | 160-180 | 190-210 | 210-240 | ||
|
AOCC
|
Φ6 - Φ10 | 8-10 | 15-20 | 40-45 | 70-85 | 90-100 | 110-120 | 140-150 | 160-180 | |
| Φ10 - Φ16 | 10-13 | 20-25 | 45-50 | 80-90 | 100-110 | 120-140 | 150-170 | 180-200 | ||
| Power of motor: kw | 22 | 55 | 75 | 132 | 185 | 220 | 280 | 315 | ||
