Product Details:
Payment & Shipping Terms:
|
| Product Type: | Paper Box Forming Machine | Quality: | Excellent |
|---|---|---|---|
| Delivery Time: | Within 7 Days | Material: | STEEL |
| Shipment Term: | By VESSEL /AIR | Design Speed M/min: | 100-300 |
| Multy Ply Board: | 3/5/7 Ply | Payment Term: | L/C,T/T |
| Highlight: | corrugated carton making machine,corrugated cardboard making machine |
||
Corrugated Cardboard Machine For Box Making
Machine For Box Making Specification
Box making machine can produce hamburger boxes, four-square boxes, pizza boxes, cake boxes, packing boxes, food boxes (take-away), chip boxes and other cartons made of cardboard and corrugated paper.

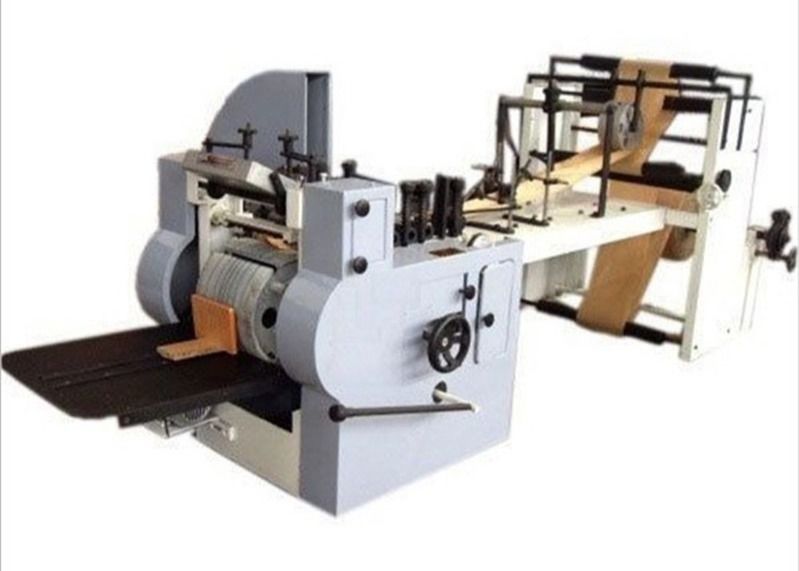

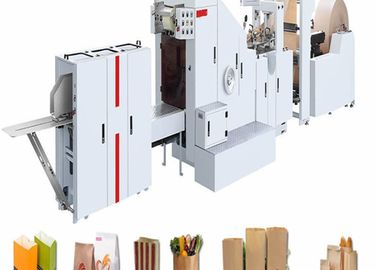

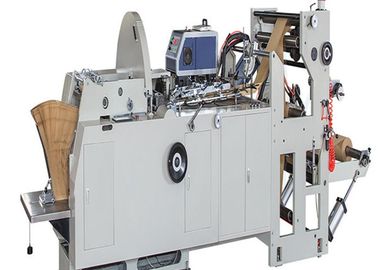

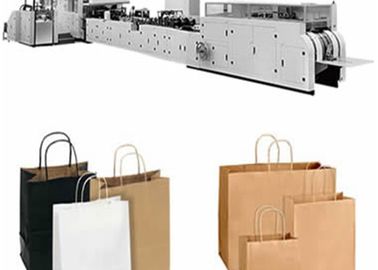

This paper bag making machine forming the paper bag in one process from roll paper, edge folding, tube forming, cutting, gluing, bottom folding,bottom gluing and finishing bag Easy operation, low power consumption, high efficiency. It is an ideal machine for producing food bags like bread bags, KFC bags and Mcdonald’s bags.
| Model | HT1020 |
| Max. machine speed (pcs/min) | 70 |
| Max. feeding size (mm) | 920x2100 |
| Max. printing area (mm) | 920x2000 |
| Min. feeding size at normal slotting | 250x530 |
| Number of colors of printing | 1 color, 2 colors, 3 colors or 4 colors, pls select the number of colors for printing at the time of inquiry. |
| Printing plate thickness (mm) | 6 |
| Nos. of ply of cardboard | 3,5,7 |
| Registration precision (mm) | ≤0.6 |
| Die-cutting precision (mm) | ≤±1.2 |
Machine For Box Making Features
1. Adopt touch screen and PC control system, the work condition can be shown real time.
2. Equipped with accurate servo motor drive, it makes the machine run steadily and efficiently.
3. Material lifting adopt pneumatic lift structure.
4. Global initiative, leading technology, the “foolproof” style automatic constant tension control system using the United Stated Bellofram precision controller. The tension will be just right from beginning to end.
5. Double photoelectric sensor limit automatic correction control system and deviation rectification stability, energy saving, long life.
6. Accurate color tracking system, color errors automatically shut down.
7. Automatic lubricating oil supply system.
Machine For Box Making Advantages
* Feature of stereo box die-cutter: high efficiency, reaches 160pcs/min
* Multifunctionality: can manufacture the products such as meal box, chips box, stereo box or burger box with different
specifications on one machine only by changing its molds.
* This machine applies water-based adhesive coating device, attains high efficiency and very high precision. Water-based
adhesive, as water soluble adhesive compostion, is a kind of food-grade glue.
* Most of the machine applies high-quality sealing bearing, prevents from dust or liquid penetrating and impacting the service life of bearings, with long service life and good stability.
* The whole is driven by high-quality timing belts and ensures almost zero error during its operation.
* Main mould employs pine wood, enjoys high efficiency when replacing its mould.
* Can automatically collect, store and count finished products, and install additionally counter as per the requirements of
customers.
* The machine applies PLC intelligent control system, and automatically stop when there is paper jamming or no paper. It can avoid unnecessary harm caused by the contact between worker and operation mechanism during the production process.
If you need more choice and solution,weclome to contact us any time.
