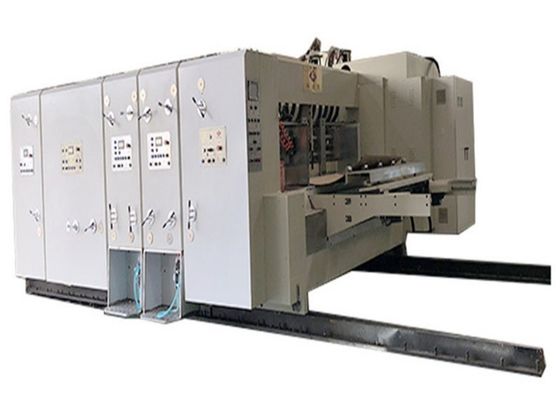

Semi Automatic Corrugated Cardboard Machine Printing And Slotting Machine

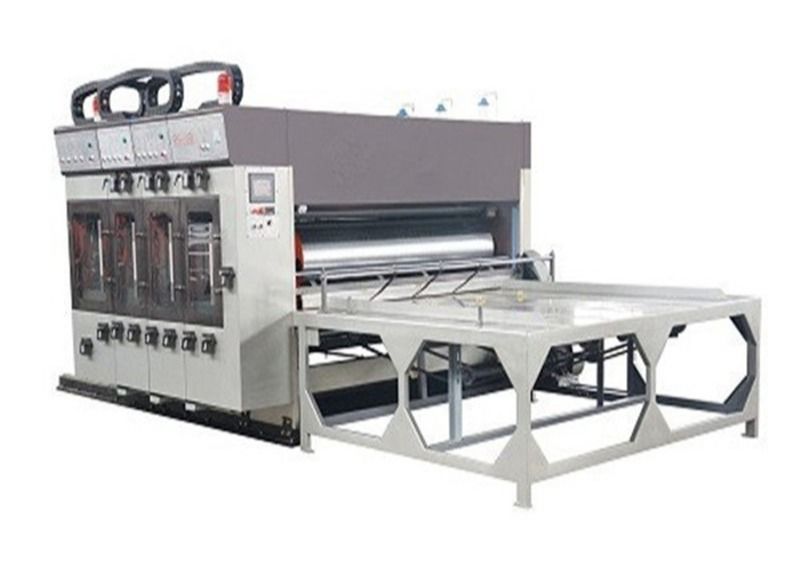

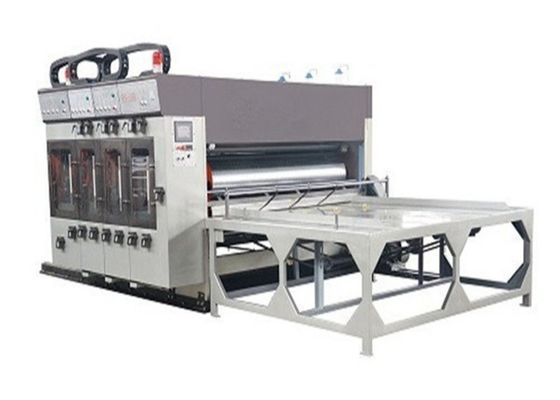

Semi Automatic Corrugated Cardboard Machine Printing And Slotting Machine

Feeding department

It adopts the combination of chain-paper feeding style ensuring paper feeding steady and reducing the rate of spoiled products.

Printing department

1. the rinting roller diameter .400mm. 480MM 530mm
2. Adopt digit number electrical phase controller ,can 360degree adjust ,save the adjust time,increase adjust accurate
3. Auto rise the ink plate ,the inker turning to prevent ink dried.
4. Adopt electrically separation ,pneumatic locking
5. Ink supplied by pneumatic diaphragm pump
6. Main transmission gear made by 45# steel ,it adopts helical gear driving and processed by high frequency quenching.Auto sprinkle lubricating system ensures the machine precise and use life
8 all the roller must be chrome -plating in order to increase the hardness
9. the auto count function
10.  Have alarm system ,when machine start work there have alarm ,gurantee the work safe

Die cutting part

1. rubber cushion imported from Taiwan
2. Double-worm abrasire belt cushion correction facility
3. Cushion axial floating automatically to improve the utilization rate of cushion. The range of floating is 0-20mm (from middle to left or right )
4. Speed difference self-compensating function
5. Die cutting phase is adjusted by electric

If you need more choice and solution,weclome to contact us any time.

Features

►The whole machine is designed and made according to high requirements with reliable and safety function; allows quick order changing and user friendly operation;
►Independent computer control is able to store different orders,enable quick order changing;
►Each working unit is motorized for open and close actions,with warning alarm system to ensure safety;
►The distance adjustment of the feeding roll,press roll,and netted roll are achieved by electric control;
►Central collection system for the dust and waste flakes
►With automatic zero setting and reset function;
►Driving gears are imported products,its grinding hardness is above 60 degrees;
►Adopted joint ring-free technology,to reduce abrasion and achieve precise printing result;
►Select the excellent materials and parts,all orders are made of the fine steel,with chrome plating and harden treatment;
►Adopted gear lubricant auto self-balance device,to keep the lubricant levels in each unit uniform at all times;

Printer Unit

►Quick set and self locking pull collars.
►Automatic resetting after cleaning the printer.
►With four unit ceramic roller and doctor blade.
►ceramic roller LPI according to customer requirement.
►with six units ceramic roller and four units doctor blade.
►Printing register is digitally controlled by motor and PLC.
►Transverse register is also digital controlled by motor and PLC ±10mm.
►Cleaning function can be automatically switched to ensure the ink recycling thoroughly.
►Pneumatic clutch is adopted on the anilox roll to:
(1)Make the roll stop when the unit is not printing;
(2)Allow units which are not in use to be washed up while running;
(3)Make the roll run at the same speed as the main motor when the unit is printing;
(4)Reduce the possibility of damage to the rubber roll and the anilox roll for inproper operation.
►A fixed device of printing register and brake of electromagnetic clutch is used when the unit is opened.upon closing the unit,the positions are precisely restored so the unit is ready for production without adjustment.
►Mounting roller with left and right both of side locking device,let the mounting position more accurately.

Slotting Unit

►Motorized controls of the slotting bosses caliber.
►The first pre-creasing,the cardboard not be damaged after prepressing.
►Upper creasing roll covered by anvil ring,so cardboard is not damaged easily.
►Slotting register and height of carton box are digital controlled by motor and PLC.
►Flexible angle cutting knife can cut 3 or 5 or 7 ply cardboard with no adjustment,easy to operate.
►Single shaft five blades slotting ,an internal gear adjusts the height of the carton box and prevents the lubricating oil from spilling or leaking onto the cardboard
►Upper boss and lower boss are coupled to keep the two knives aligned while moving,which is helpful to prolong service life.
►Slotting bosses move along liner lead rails and are driven by lead screws for flexible and precise movement.
►Transversal movement of the pre-creasing rolls,and slotting bosses’ are digital controlled by motor and PLC
►A protective device prevents the slotting knife from crashing when the height of the carton box is adjusted.
