Product Details:
Payment & Shipping Terms:
|
| Drum Diameter: | 4250mm | Capacity: | 850-1400t/d |
|---|---|---|---|
| Motor Power: | 1120KW | Working Temperature: | 40-90℃ |
| Consistency: | 14-18% | Application: | Waste Paper Breaking |
| Product Name: | 1400t/D Drum Pulper For Waste Carton Paper Recycling | ||
| Highlight: | waste paper breaking drum pulper,1400t/d drum pulper,drum pulper in waste paper recycling |
||
1400t/D Drum Pulper For Waste Carton Paper Recycling
Drum Pulper Product Description
Pulper equipment is mainly used for continuous gentle pulping and coarse screening of waste paper under high consistency. The drum pulper can continuously pulp and preliminary screen, simplifying the process.
It can gently pulp under 14%-18% high consistency to uttermost maintain the physical property of fiber. Low damage to impurities and high efficiency of deslagging reduce the following equipment burden.
Low energy consumption, reduce running cost, improve the competitiveness for per ton pulp. Long pulping residence time, sufficient fiber relief, low rate fine fiber loss.Few quick-wear parts, continuous pulping, and low maintenance cost.
Drum pulper is a cylinder of continuous pulping equipment. When the drum rotates, the waste paper goes up. Once all the paper reaches the top, they drop down on the bottom, so, after many times, the paper is broken the fiber comes out. The machine consists of pulping and screening functions, and is particularly suitable for unsorted waste paper raw materials, expanding the recovery and utilization of the secondary fiber, reducing environmental pollution, and saving energy.
Drum Pulper Product Specification
| Type | HT-25A/B | HT-275A/B | HT-30A/B | HT-325A/B | HT-375A/B | HT-40A/B | HT-425A/B |
| Drum Diameter(mm) | 2500 | 2750 | 3000 | 3250 | 3750 | 4000 | 4250 |
| Processing Capacity(t/d) | 80-170 | 130-220 | 180-300 | 230-380 | 410-700 | 600-1100 | 850-1400 |
| Motor Power(kw) | 132 | 200 | 280 | 355 | 630 | 900 | 1120 |
Drum Pulper Main Features
1. Used for mild breaking to waste paper.
2. Single crushing and screening.
3. Pulping density reaches 14%-18%.
4. Does not damage the fiber.

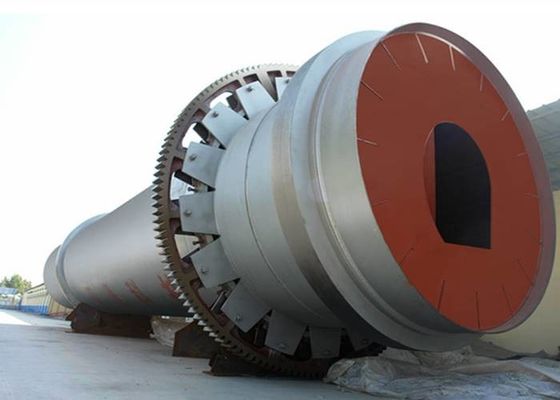

Drum Pulper Photos
