Product Details:
Payment & Shipping Terms:
|
| Material: | Polyurethane | Size: | 610mm*610mm /305mm*305mm |
|---|---|---|---|
| Type: | LINEAR | Feature: | High Screening Efficiency |
| Usage: | Separation Screening | Function: | Screening\separation\sorting\sieving |
| Highlight: | 305x305mm Polyurethane Screens,305x305 Polyurethane Screens,dehydration polyurethane screens |
||

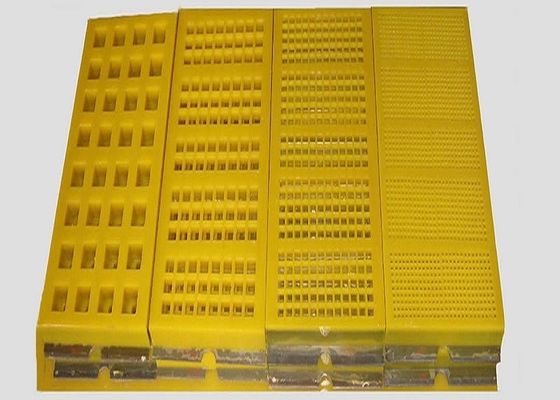

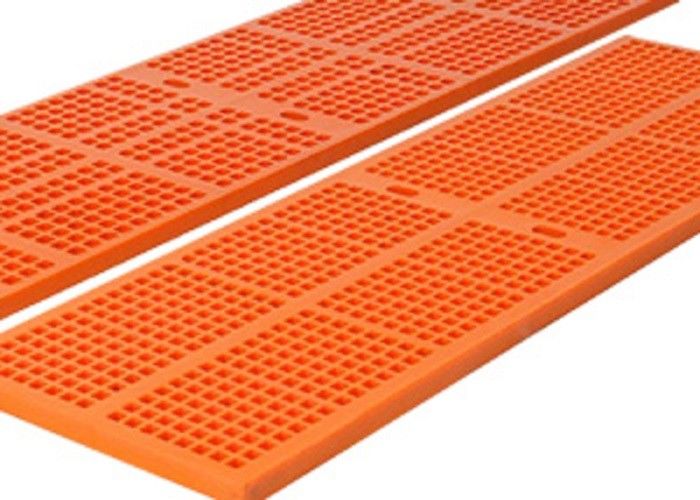

Polyurethane screens modular Industrial screens
Polyurethane Screen Mesh
Polyurethane Screen Mesh is developed in recent years for mining mineral processing, grading, dehydration and other screening machines replace metal sieve (mesh) of a new product. Mainly used in coal, iron ore, copper, gold and other ores grading, screening, dewatering and other places, is one of the components necessary shaker sieve structure by polyurethane are divided into four types: mosaic bolt Join layering connection screen hook connection.
The models of the Polyurethane Screen
XINGHUO polyurethane screen includes: Dewatering Screen, Tension screen, Modular screen panels, Flip-Flop screen panels, punched plate screen deck, Comb sieve plate.
XINGHUO is a professional polyurethane screen panels manufacturer in CHINA.We can make all kinds of different types of polyurethane sieve plate, the best quality Chinese polyurethane screen available to customers.
| Standard aperture sizes of the Mining Polyurethane Screen Mesh | |||
| Size of aperture W | Overall height BH | Height of the screenin area SF | Effective open screening area % |
| 3 | 30 | 7 | 20.3% |
| 3.15 | 30 | 10 | 14.6 |
| 4 | 30 | 10 | 16.8 |
| 5 | 30 | 10 | 26.3 |
| 6.3 | 30 | 13 | 26.7 |
| 7 | 30 | 11 | 27.7 |
| 8 | 30 | 10 | 29 |
| 9 | 30 | 18 | 24 |
| 10 | 30 | 12 | 29 |
| 11 | 30 | 16 | 27 |
| 12 | 30 | 17 | 33 |
| 13 | 30 | 17 | 28 |
| 14 | 30 | 19 | 25 |
| 15 | 30 | 19 | 26 |
| 16 | 30 | 17 | 27 |
| 18 | 30 | 20 | 34 |
| 18 | 40 | 24 | 24 |
| 19 | 30 | 19 | 37 |
| 20 | 30 | 20 | 30 |
| 22 | 30 | 20 | 36 |
| 24 | 30 | 20 | 32 |
| 25 | 30 | 22 | 26 |
| 27 | 30 | 21 | 35 |
| 30 | 30 | 19 | 27 |
| 32 | 40 | 30 | 27 |
| 34 | 40 | 30 | 25 |
| 35 | 40 | 30 | 22 |
| 36 | 40 | 40 | 24 |
| 38 | 30 | 20 | 30 |
| 40 | 40 | 31 | 29 |
| 42 | 40 | 31 | 33 |
| 45 | 35 | 30 | 37 |
| 50 | 50 | 30 | 30 |
| 55 | 40 | 40 | 34 |
| 60 | 40 | 40 | 35 |
| 63 | 40 | 40 | 30 |
| 65 | 40 | 40 | 25 |
| 65 | 50 | 50 | 27 |
| 67 | 38 | 38 | 35 |
| 70 | 40 | 40 | 29 |
| 80 | 40 | 40 | 34 |
Features of Polyurethane Screen Mesh
Screening high efficiency,Wide application, more professional,Screening high precision, Low
noise, Significant economic benefits.
Packaging: Water-proof paper or plastic film or wooden bag as customer's request.
Application
The polyurethane fine screen mesh with extremely fine openings is ideal for fine particle separations.
The polyurethane fine screen mesh is suitable for a wide range of wet and dry applications.
