Product Details:
Payment & Shipping Terms:
|
| Material: | Synthetic Material | Thickness: | 9±0.3mm |
|---|---|---|---|
| Wdith Range: | 1000mm - 3200mm | Heat Resistance: | 220℃ |
| Weight: | 7.5kg/m2 | Length: | 80m |
| Highlight: | Width 1000mm Corrugator Belt,Width 3000mm Corrugator Belt,MAROUIP Cardboard Line Corrugator Belt |
||

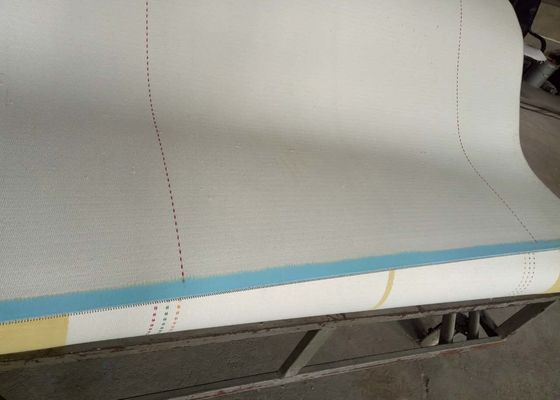

Products Description
high speed corrugator Belt was developed to high speed running and rapid dying of the corrugated board. the structure and the quality of the belt facilitates steam evaporation from the paperboard. The surface of the belt is twill weave to reduce the noise when high speed running on the machine, increase the friction coefficient.
Corrugator Belt Features
|
1.Straight cut edge and long service life . |
3.Hot-press and flocking joint |
| 2.Level surface , clean mark | 4.High moisture absorption and release ; low noise and high speed of operation |
Corrugator belt Specifications
| Product |
Woven Corrugator Belt |
| Thickness | 9mm |
| Width range | 1000mm - 3000mm |
| Length | 80 meters |
| Heat-resistance | 220℃ |
| Tensile strength | 70Mpa |
| Coefficient of friction | ≥ 0.40µ |
| Weight per unit | (7.5±0.3)kg/㎡ |
| Air-permeability 40mmwater Column | 2.0m³/m2 min |
| Seam | Hot JAW lacing/Clipper with rubber coated |
| Suitable position | Top & Bottom belt |
|
Used on all corrugators high tearing resistance Long life time running High abrasion resistance Moisture absorption Heat resistance Low noise |
|
Corrugator Belt Seam

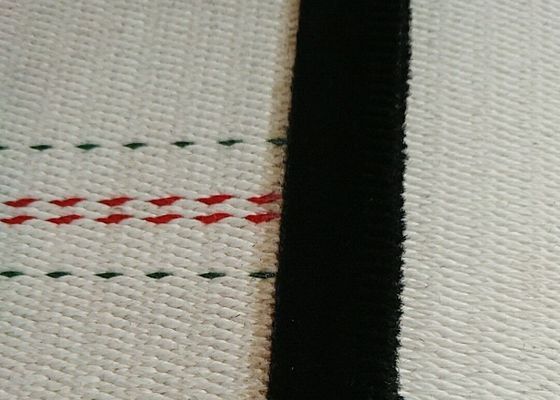

1.Hot clipper(jaw) Lacing with flocking:
Low noise emission
Flocking surface to protect the corrugated board no marks
NO weakening of the fabric
Without touch of the clipper with the board, heating plates and the pressure loading system
Safety and persistent
Excellent running performance
2.Clipper with rubber coated:
Low noise emission
Resistance tearing, Non-abscission
rubber surface to protect the corrugated board smooth
Rubber flat surface neither damage pressure device nor damage outer rubber of driving-roller
Stable transmission
Prevent heavy roll from jointing
3.Fastener steel clipper / Jaw
All clipper import from America Fastener
Top quality of clipper grade
Ensure the enough tensile
Resistance to abrasion and tear Good running ability
Application
Huatao Corrugator belts are sprecifical use in the heating and tracking section of all kinds famous corrugators. Huatao group has been processing technical advances in corrugator belts for many years,Till today,we could provide the super quality belts for kinds of demanding application:
Including BHS/AGNATI/MHI/MIT/MARQUIP/TCY/ISOWA and more china corrugator machine. We study and offer the suitable belts for every application
Corrugator Belts Package
Type-I:Waterproof film+Dampblanket+Plasticbag+pallet
Type-II:Waterprooffilm+Dampblanket+Plasticbag+woodpackage+pallet
Note: The wooden box use non-fumigation wood box, it's convenient to customs clearance.Could save customers more time.
Advantages
High grade material
Safety packing to protect
High absorption of moisture
High durability
Maximum flexibility
Suitable for machine speed 50 - 300M/min
Goodrunningwith low noise
Tear strength
Less trimming
Long life time running
