40-70mm Steel Suction Pressure Drilling Paper Machine Roll

40~70mm steel sutcion Pressure drilling Roll

40~70mm steel sutcion Pressure drilling Roll Introduce

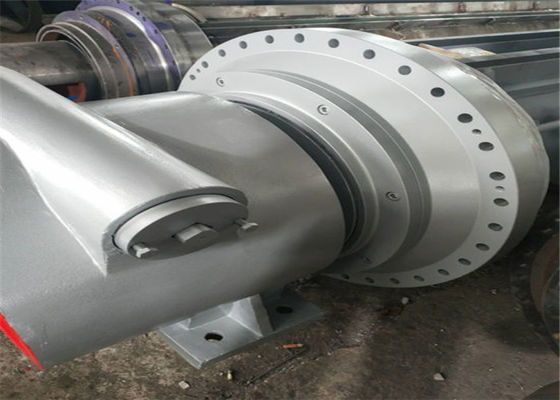

Suction rolls are located in different positions of a paper machine: Suction Forming Rolls, Couch Rolls, Pick-Up rolls, Suction Press Rolls with shell in stainless steel or bronze, with a silent drilling pattern to less the noise. The internal suction box in stainless steel has air-loaded seals made of anti-wear graphite-based material and moreover internal showers with re-circulation are provided. Both the suction angle and width are adjustable during the production.
The vacuum box can be divided in different zones, for different levels. The connection with the vacuum system is provided on the front side or on the drive side if the roll is not directly driven, thus avoiding the installation of the internal bearing, useful solution for smooth operations and an easy maintenance.

40~70mm steel sutcion Pressure drilling Roll  Feature

Technical Parameters:

Application

Paper machine press section

Form

Single-chamber pre-press, single-chamber main pressure, double-chamber or three-chamber, suction press, three-roll two-pressure, four-roll two-pressure, four-roll three-pressure

Component

Adhesive surface: rubber thickness 20-25mm, rubber hardness "A" 95±2°, rubber surface is drilled φ3.5mm~φ4mm, opening rate is about 15-20%

Roller body: stainless steel 304 coil, wall thickness 40~70mm, roller surface drilling φ4~φ5mm

Vacuum box: cast iron or stainless steel 304 plate welding. Built-in water spray pipe, air cushion pipe and adjusting rod

Operation side bearing seat, transmission side bearing seat
