Product Details:
Payment & Shipping Terms:
|
| Application: | Manufacturing Plant, Paper Mill | Filter Disc Diameter: | 3700-5200mm |
|---|---|---|---|
| Thickness: | 3.8-4.6mm | Felt Weight: | 1450-1850GSM |
| Color: | White | Material: | Synthetic / Polyester |
| Produce Process: | Needle | Use Position: | Press Section Of PM |
| Highlight: | endless paper machine clothing,PMC paper machine clothing,endless paper machine press fabrics |
||
Endless Press Fabrics
Felt Application:
paper making felt can be divided into three types: wet press felt, pick up felt and dryer felt according to the uses. Paper making felt possess good air permeability, mark-less, heat resistance, wet resistance, anti-aging, structure stability, anti-worn out, dimensional stability, excellent tensile strength, high linear pressure, easy to operate, long life performance.
Felt Design Features:
According to paper machine and paper, we can change the structure of base mesh. It has the characters of anti-high pressure, good elasticity and filterability, stable size, small elongation, great strength, affective to eliminate grooving, vacuum mark, blind-hole mark and other marks. Suitable to vacuum press, kinds of complex press and other press for producing high grad offset paper, and kinds of high grade paper and paper board etc.
Felt Key Feature:
1. High anti-compaction capacity. 2. Extremely high elasticity and recoverability. 3. Strong drainability and larger void volumn. 4. Long holding time of wear resistance and plastic strength of felt. 5. Smooth felt surface and even pressure distribution.
Press Felt Type:
The type of paper making felt | |||||
Felt series | Application | Technical Parameter | |||
Single Layer BOM Felt | Single Layer Forming BOM Felt | Paper machine | Cylinder, Super Forming, Fourdrinier, Inclined Wire Machine, Nip Wire Machine etc. | Felt GSM | 700-1200g/m2 |
Single Layer Press BOM Felt | Working speed | ≤800m/min | Felt GSM Tolerance | ≤±4% | |
Air Permeability | 30-120cfm | ||||
Single Layer Top BOM Felt | Paper kind | ≥8g/m2 all kinds of paper | Tensile Strength | ≥2000N/5cm | |
Elongation Percentage | ≤1% | ||||
1.5 Layer BOM Pulp(Paper) Felt | Line pressure | ≤80KN/m | Width Variation | ≤±2cm | |
Double Layer BOM Felt | Double Layer Forming BOM Felt | Paper machine | Multi-Cylinder, Super Forming, Fourdrinier, Superposition Wire, Nip Wire Paper Making Machine etc for different kinds of paper machine | Felt GSM | 950-1450g/m2 |
Felt GSM Tolerance | ≤±4% | ||||
Double Layer Press BOM Felt | Working speed | ≤1000m/min | Air Permeability | 30-110cfm | |
Double Layer BOM Special Composite Press Felt | Paper kind | ≥8g/m2 all kinds of paper | Tensile Strength | ≥3000N/5cm | |
Elongation Percentage | ≤0.6% | ||||
Double Layer Top BOM Felt | Line pressure | 60-200KN/m | Width Variation | ≤±2cm | |
Triple Layer BOM Felt | Tri-layer BOM For Large Roll Felt | Paper machine | Medium/high working speed paper machine of Multi-cylinder, Fourdrinier, Superposition Wire, Vacuum Composite Press, Large Diameter Roll Press, Shoe Press etc. | Felt GSM | 145-1800g/m2 |
Felt GSM Tolerance | ≤±4% | ||||
Air Permeability | 40-90cfm | ||||
Tri-layer BOM For Shoe Press | Working speed | ≤1000m/min | Tensile Strength | ≥4500N/5cm | |
Paper kind | ≥40g/m2 newsprint, write paper,high-grade board paper etc. | Elongation Percentage | ≤0.6% | ||
Tri-layer BOM Hot Press | Line pressure | ≥200KN/m | Width Variation | ≤±2cm | |

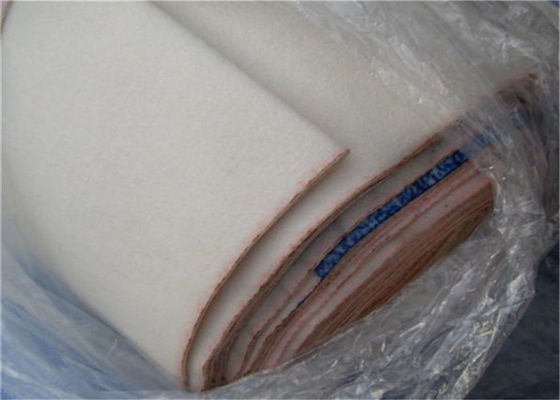

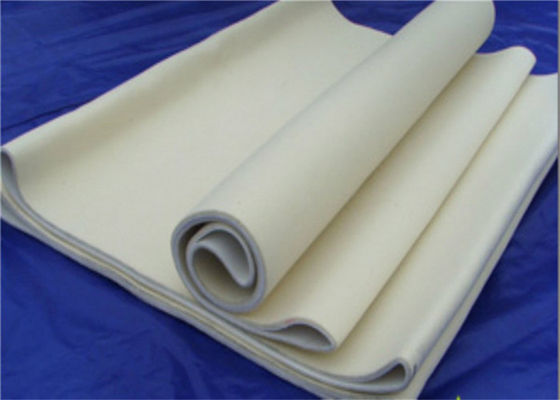

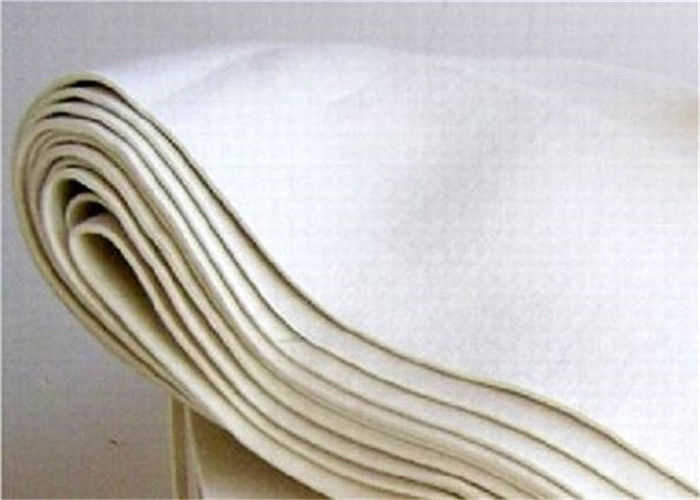

Product Pictures:
Felt show:
Products exported to the Mexico, Indonesia, Malaysia, Bangladesh, India, Thailand, Ethiopia, Algeria, Egypt, Turkey, Pakistan, uzbekistan and other countries.Our enterprises and products have established a good image in the international market. Sincerely hope we can pleasant cooperation!
Our service:
HUATAO GROUP has professional technical team for installation, commissioning, and related services, also has a very wholesome file system, contacts with the user regularly. HUATAO GROUP will try best to solve the problems from the customer.Within the quality guarantee, Greatland settle the problems on site.
FAQ:
1. Q: How to confirm the type?
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with size
4). send us a small piece sample.
2. Q: Waht is the payment terms?
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
3. Q: When will delivery the goods?
A: Usally, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
4. Q: How long will the fabric be used?
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
5. Q: Is the package strong enough for the long transportation?
A: Of course it is.
By sea, we will pack every piece into wooden/ polywood box.
By air, we will pack it by strong water-proof bag.
Looking for ideal Press Felt Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Press Felts are quality guaranteed. We are China Origin Factory of Paper Making Press Felt. If you have any question, please feel free to contact us.
