| Driven Type: | Hydraulic | Width Min: | 900mm |
|---|---|---|---|
| Width Max: | 2200mm | Maximum Paper Roll Diameter: | 1500mm |
| Main Shaft Diameter: | 242mm | Working Pressure: | 16-18Mpa |
| After-Sales Service: | Yes | ||
| Highlight: | 2200mm Hydraulic Mill Roll Stand,2200mm hydraulic paper mill roll stand,900mm shaftless mill roll stand |
||
900-2200mm width paper reel hydraulic mill roll stand for corrugated cardboard production
Product Description
Hydraulic Mill Roll Stand//Corrugated Cardboard Mill Roll Stand/Paperboard Mill Roll Stand: Symmetrical structure, can carry two craft paper at one time, which can work without brake. Reel paper lift-lower, clamp, loosen, movement, contraposition operated by hydraulic pressure. feeding craft/reel paper quickly.
Specification Sheet
| Max. Working Width | 1000mm-1800mm |
| Min. Working Width | 700mm |
| Max. Paper Mill Dia | 1500mm |
| Maximum paper diameter | 1400mm |
| Max. Supporting Weight (One side) | 2T |
The function of the Mill Roll Stand
1. Each arm setup four direction buttons, and it is easy to operate.
2. It can be loading two paper rolls at the same time, without stopping the machine for changing the paper roll.
3. The whole machine uses 6 cylinders fully hydraulic controlled, hydraulic control arm lift and down, clamping and open, left and right moving.
4. Tension control: multipoint pneumatic brakes, brakes good performance, loses heat fast.
5. The chuck adopts inner expansion type or teeth type, reducing the destruction of the paper core. saving paper.

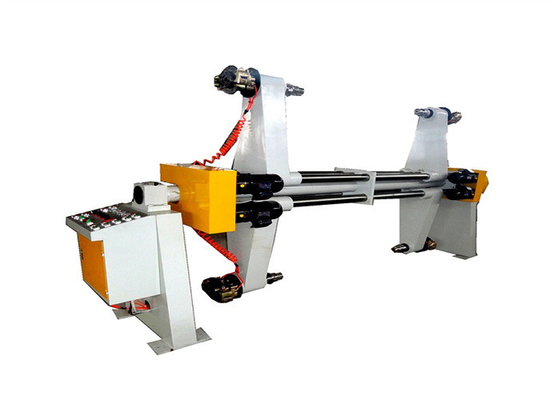

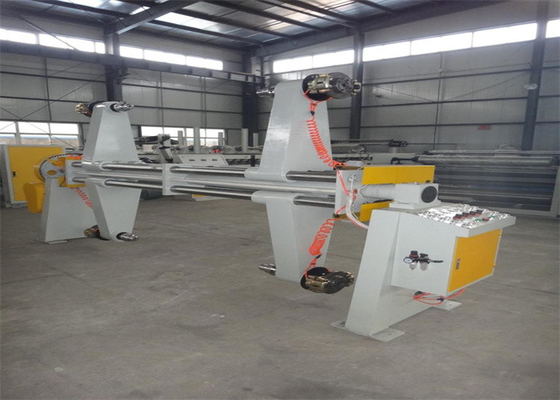

Product Photos
