Product Details:
Payment & Shipping Terms:
|
| Material: | Import Monofilament | Type: | Single Layer, 1.5 Layer, 2.5 Layer, SSB Forming Fabric |
|---|---|---|---|
| Width: | Up To 14m Width | Length: | Customized |
| CFM: | Customized | Name: | Blue Paper Machine Clothing Single Layer 2.5 Layer Ssb Triple Layer Forming Fabric |
| Highlight: | Polyester Forming Fabric,SSBLayer Forming Fabric |
||

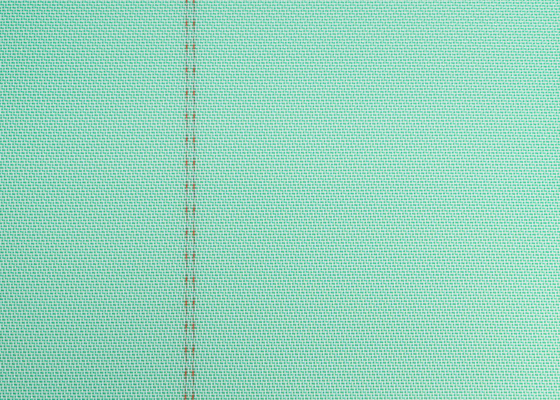

Long Lifetime Polyester Single/2.5/SSBLayer Forming Fabric For High Speed Paper Machine
Paper Machine Forming fabric includes:
Single-layer forming wire, Double layer forming wire, 2.5 layer forming wire, SSB forming fabric, Cresent Former Forming Fabric.
The single-layer forming fabric is the simplest forming fabric.
They are woven in 4-shed, 5-shed, and8 -sheds for different applications. According to their weaving shed, single-layer fabrics could be used for the manufacture of kraft papers, tissue papers, writing & printing papers, etc.
4-shed single layer forming fabric. Display excellent stretch, drainage, and anti-wear property.
5-shed single layer forming fabric. Better stretch, drainage features, and ideal for tissue machines.
8-shed single layer forming fabric. With enhanced retention, excellent drainage, and easy to clean.
Single layer forming fabric specification
| FABRIC CODE | WARP DENSITY | WEFT DENSITY | WARP DIAMETER | WEFT DIAMETER | AIR PERMEABILITY | FSI | DI |
| HT40203 | 40.5~41.5 | 29.5~30.5 | 0.15 | 0.20 | 285CFM | 135 | 14.1 |
| HT25284 | 27.5~28.5 | 22.0~23.0 | 0.22 | 0.28, 0.28 | 400CFM | 86 | 11.4 |
| HT25306 | 27.5~28.5 | 21.5~22.5 | 0.22 | 0.30, 0.30 | 505CFM | 77 | 11.3 |
| HT25408-1 | 27.5~28.5 | 17.5~18.5 | 0.22 | 0.40, 0.40 | 505CFM | 70 | 8.7 |
| HT25408-2 | 27.5~28.5 | 16.5~17.5 | 0.22 | 0.40, 0.40 | 560CFM | 69 | 9.1 |
1.5 layer forming fabric is actually a 5-shed single layer fabric that has been modified to have extra yarns which provide it the same properties as that of a double layer one. The extra yarns provide better sheet side smoothness as well as improved retention. Thanks to its unique structure, it delivers very good drainage and ease of cleaning.
1.5 Layer forming fabric is mainly used on the packing paper machine with machine speed 50m-400m/min, which has high air permeability as single layer forming fabric, and has a longer life than single layer forming fabric.
2.5 layer forming fabrics are also known as support Shute double-layer fabrics or double-layer extra designs.
It's a double-layer design with an extra Shute yarn added on the forming side between the 2regular cross-direction yarns.
In order to further improve the characteristics of the double-layer design forming fabric, we increased the weft density on the
sheet side during the weaving process. The result is better sheet support that improves the wire mark, retention, and surface
properties of the paper. In addition, the number of wefts on the machine side is reduced, thereby increasing the three-dimensional
space, thereby enhancing the drainage capacity.
2.5 layer forming fabric specification
| FABRIC CODE | WARP DENSITY | WEFT DENSITY | WARP DIAMETER | WEFT DIAMETER | AIR PERMEABILITY | FSI | DI |
| HT6408 | 71.5~72.5 | 67.5~68.5 | 0.15 | 0.18 0.12, 0.22 0.22 | 275~500CFM | 119~155 | 25~37 |
| HT5608 | 62.5~63.5 | 51.0~52.0 | 0.17 | 0.18 0.13, 0.25 0.25 | 380CFM | 121 | 26.9 |
| HT5616-1 | 62.5~63.5 | 60.5~61.5 | 0.17 | 0.20 0.13, 0.30 0.30 | 285CFM | 139 | 23.9 |
| HT5616-2 | 62.5~63.5 | 60.5~61.5 | 0.17 | 0.20 0.13, 0.30 0.30 | 350CFM | 126 | 26 |
| HT4216 | 47.0~48.0 | 47.0~48.0 | 0.22 | 0.22 0.13, 0.35 0.35 | 380CFM | 107 | 24.8 |
Triple-layer also SSB forming fabrics have two independent single-layer fabrics bound together by separated yarns.
On the forming side, the yarns have a small diameter to increase the support index. On the Wearside, cross-direction yarns have
a large diameter to improve the fabric life. The wear side is made with a coarse mesh to improve stability and wear resistance.
The paper side is made with very fine yarns on the surface to optimize the sheet forming performance.
This modified design delivers enhanced stability in the cross-machine direction thanks to its three-layer weft structure.
Furthermore, improved drainage is guaranteed because of its increased three-dimensional space.
SSB Triple Forming fabric Technical Specification
| FABRIC CODE | WARP DENSITY | WEFT DENSITY | WARP DIAMETER | WEFT DIAMETER | AIR PERMEABILITY | FSI | DI |
| HT6020 | 69.5~70.5 | 79.5~80.5 | 0.13, 0.20 | 0.13 0.13, 0.27 0.27 | 250CFM | 195 | 25.4 |
| HT5220-1 | 59.5~60.5 | 62.5~63.5 | 0.13, 0.20 | 0.13 0.13, 0.25 0.25 | 540CFM | 157 | 43.2 |
| HT5220-2 | 59.5~60.5 | 63.5~64.5 | 0.13, 0.20 | 0.13 0.13, 0.30 0.30 | 445CFM | 159 | 36.2 |
| HT5224 | 51.5~52.5 | 57.5~58.5 | 0.17, 0.25 | 0.17 0.17, 0.40 0.40 | 250CFM | 142 | 18.4 |
| HT4224 | 41.5~42.5 | 43.5~44.5 | 0.22, 0.30 | 0.22 0.22, 0.45 0.45 | 350CFM | 110 | 19 |
paper machine wire cloth Section Feature:
1. High density, good permeability
2. Acid, alkali resistance, heat resistance under 180 degrees
3. Wear resistance, long work time
4. Smooth surface, high strength
5. Install easy to use, interface without imprint
FAQ:
A: There are many methods for us to confirm the type:
1). tell us the specifications data.
2).tell us your requirements as more as possible, and our engineers will give you the best suggestion and design the most suitable mesh/ wire/ fabrics/ screen/ belt.
3). send us the photos with the size
4). send us a small piece sample.
A: We prefer T/T, but for some countries, we will also accept L/C.
So pls feel free about the payment.
A: Usually, we will deliver the goods within 15 working days. And if the quantity is big, it will take about 20-30 working days.
A: The time is different differ the usage and factory. But we can confirm and make sure that our product can be used longer than any other one in China.
A: Of course it is.
By sea, we will pack every piece into a wooden/wood box.
By air, we will pack it in a strong water-proof bag.
