| Product Name: | Guide Roll | Diameter: | 100-1600 Mm |
|---|---|---|---|
| Face Length: | 1200-7500 Mm | Material: | Cast Iron/carbon Steel |
| Shaft Material: | 40# Steel | Center Distance: | 1300-8000 Mm |
| Highlight: | Dryer Section Felt Guide Roll,Carbon Steel Felt Guide Roll,1600mm Diameter Felt Guide Roll |
||

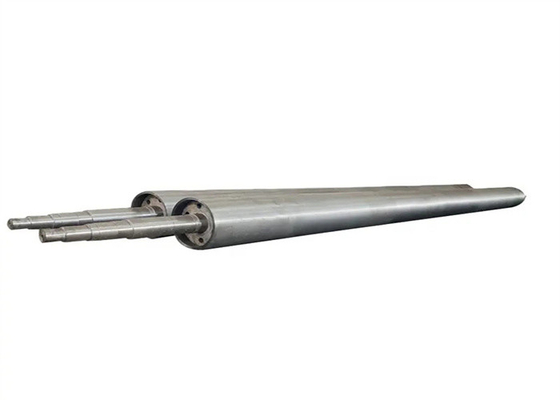

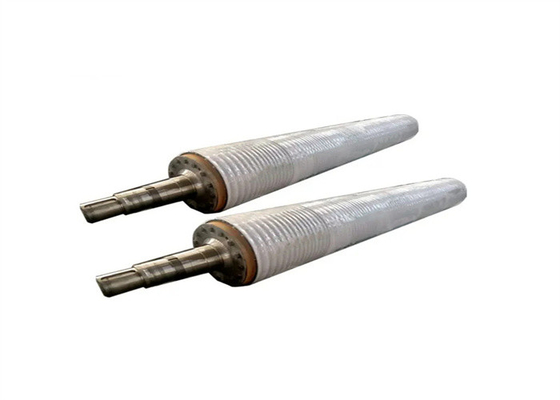

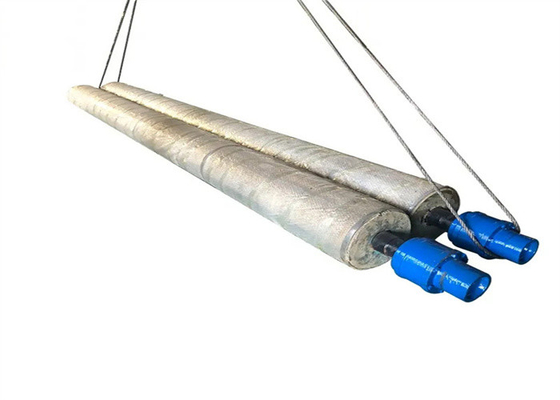

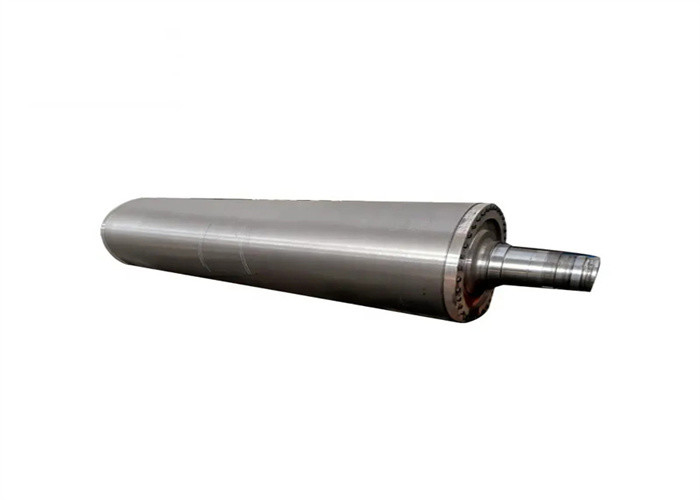

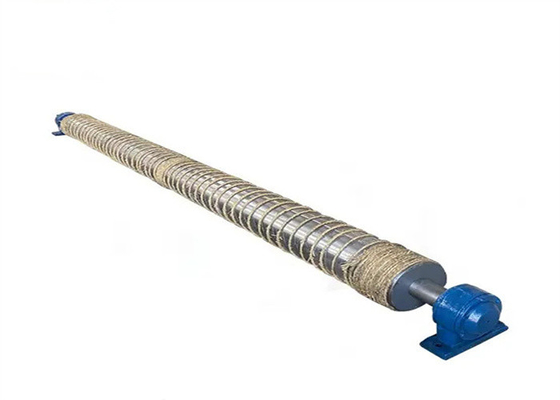

Carbon Steel Felt Guide Roll 1600mm Diameter For Dryer Section
Guide Roll Description
The Guide Roll is the most used roll in the paper machine, mainly distributed in the wire section, drying section, and press section. Its main function is to transmit the operation of the papermaking wire and felt. There are smooth rollers used in the dryer section. With the increase in the speed of the paper machine and the increase of the width of the paper web, this requires the wall thickness of the guide roller to be more uniform, and at the same time puts forward higher requirements for the dynamic deflection to meet the needs of the high-speed paper machine.
Guide Roll Specifications
| Product Name | Guide Roll |
| Face Length | 1200-7500 mm |
| Diameter | 100-1600 mm |
| Center Distance | 1300-8000 mm |
| Body Material | Cast iron/carbon steel |
| Shaft head Material | 40# steel |
| Surface Treatment | Rubber coated |
| Cover Thickness | 20-35 mm |
| Hardness of Rubber | A97 |
| Lubrication | Grease |
Guide Roll Features
1. High unit strength
2. Light weight
3. Small inertia
4. Bright surface and no rust
