Product Details:
Payment & Shipping Terms:
|
| Product Name: | Laminator Rubber Roller | Diameter: | 10-1500 Mm |
|---|---|---|---|
| Face Length: | 50-8200 Mm | Material: | 45 Carbon Steel |
| Precision: | 0.01 Mm | Surface Treatment: | Rubber Coated |
| Highlight: | rubber coated industrial conveyor roller,1500mm dia industrial conveyor roller,lamination equipment rubber coated conveyor rollers |
||

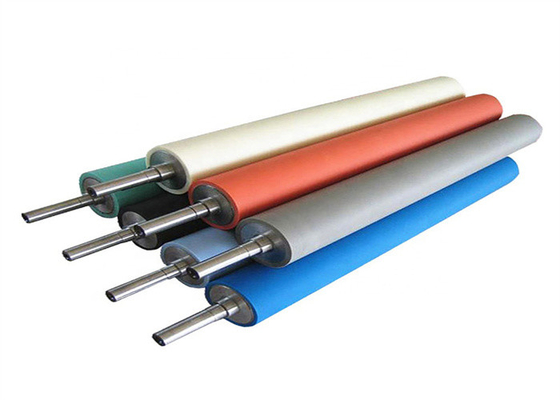

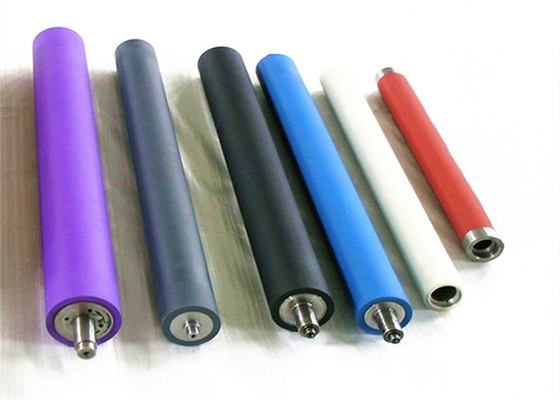

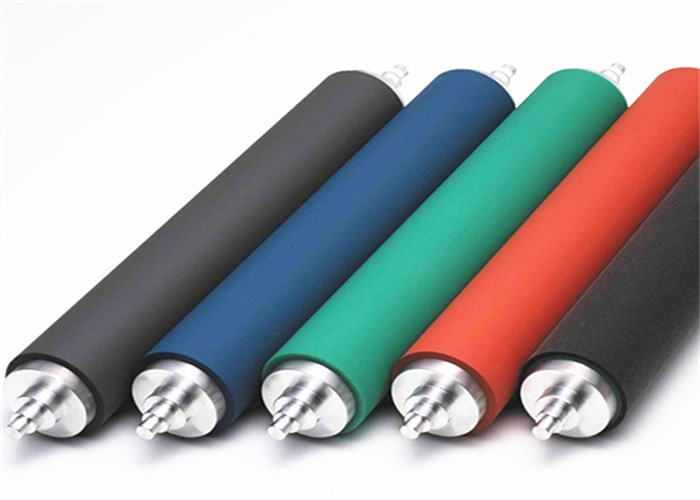

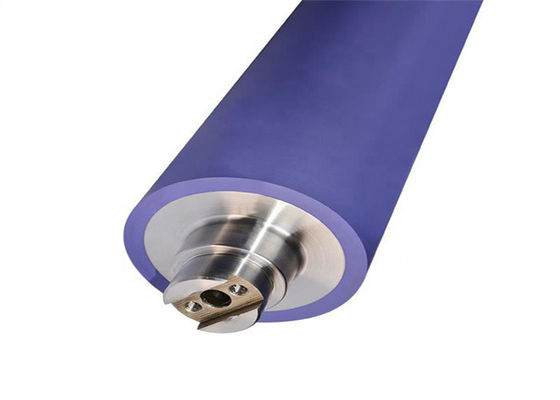

45 Carbon Steel Laminator Rubber Roller 1500mm Diameter For Lamination Machine
Laminator Rubber Roller Description
The Laminator Rubber Roller is used in heating laminating machine, which is the main part of the machine. It is used in the laminating machine to combine sheets (including metal plates, wood plates, plastic plates, glass plates, etc.) with plastic films (or other films) )fit. The rubber roller is divided into an upper roller and a lower roller. The inner shaft of the upper roller is a straight-through hollow shaft, which can be used to place heating pipes and thermal sensor probes. The surface rubber can withstand higher temperatures. The lower roller is generally used as a conveying roller and has the characteristics of wear resistance. The lower roll of the double-sided lamination model has basically the same requirements as the upper roll and also needs high-temperature resistance.
Laminator Rubber Roller Specifications
| Product Name | Laminator Rubber Roller |
| Material | 45 carbon steel |
| Diameter | 10-1500 mm |
| Face Length | 50-8200 mm |
| Precision | 0.01 mm |
| Surface Treatment | Rubber coated |
Laminator Rubber Roller Features
1. High temperature resistant
2. Laminating without impurities
3. No bubbles
4. Uniform lamination pressure
