Product Details:
Payment & Shipping Terms:
|
| Drying Area: | 0,2m2 | Minimum Temperature Of Cold Trap: | ≤ - 75 ℃ |
|---|---|---|---|
| Water Capture Capacity: | ≥6Kg/Batch | Limit Vacuum Degree: | ≤ 5pa |
| Cooling Mode: | Air Cooling | Overall Power: | 3800w |
| Highlight: | 0.2m2 Freeze Dryer Machine,Fruit Preservation Freeze Dryer Machine,Silicone Oil Freeze Dryer Machine |
||

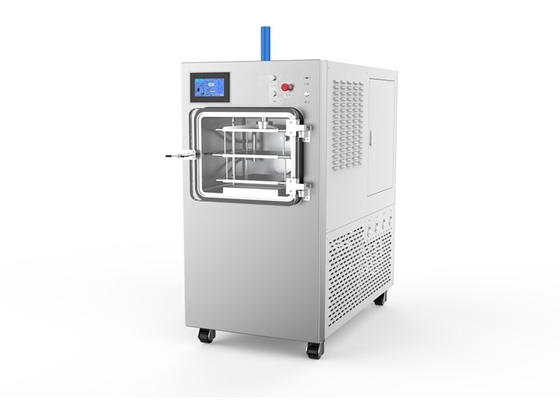

0.2m2 Drying Area In Situ Silicone Oil Freeze Dryer Machine For Fruit Preservation
Product Description of Freeze Dryer Machine
HT-20FDA-Y Freeze Dryer Machine is widely used in medicine, pharmacy, biological research, chemical industry, food, and other fields. The freeze-dried articles are easy to be stored for a long time. After adding water, they can return to the state before freeze-drying and maintain the original biochemical characteristics.
Technical Parameters of Freeze Dryer Machine
| Product description | In Situ Silicone Oil Freeze Dryer Machine |
| Drying area | 0.2m2 |
| Number of diaphragm layers | 2+1 |
| Temperature range of diaphragm | - 50 ℃ - + 70 ℃ |
| Diaphragm temperature difference | ± 1 ℃ (at balance) |
| Partition spacing | 120mm |
| Partition size | 300*340mm |
| Minimum temperature of cold trap | ≤ - 75 ℃ |
| Overall power | 3800w |
| Overall weight | About 350kg |
| Water capture capacity | ≥6Kg/Batch |
| Liquid in tray | 2L |
| Defrosting | Electric defrosting |
| Limit vacuum degree | ≤ 5pa (no-load) |
| Cooling mode | Air cooling |
| Overall dimension | 1280*850*1550+200mm |
| Ambient temperature | ≤ 25 ℃ |
| Voltage | 220V/50HZ |
Main Features of Freeze Dryer Machine
1. The transparent door of the drying bin is made of aviation acrylic material, with no adhesion, high strength, and no leakage. The change process of materials can be observed during operation.
2. Imported brand compressor, stable and low noise.
3. Brand vacuum pump with high pumping speed.
4. The pre-freeze drying is carried out in situ, which reduces the cumbersome operation of the drying process and realizes the automation of the freeze-drying process.
5. Simulate the operation window interface, vividly reflect the operation status of each component, and display the current operation parameters of each part in digital form.
Application Photos of Freeze Dryer Machine
