| Drying Area: | 0.4m2 | Number Of Diaphragm Layers: | 4 Layer |
|---|---|---|---|
| Temperature Range Of Diaphragm: | - 50 ℃ - + 60 ℃ | Limit Vacuum Degree: | ≤ 5pa |
| Minimum Temperature Of Cold Trap: | ≤ - 75 ℃ | Layer Size: | 300*340mm |
| Highlight: | Food Preservation Freeze Dryer Machine,Air Cooling Freeze Dryer Machine |
||

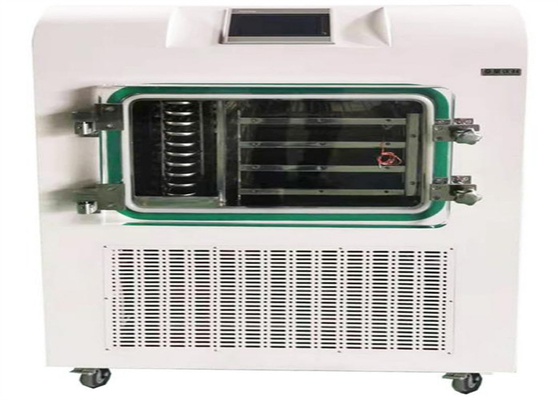

Air Cooling Silicone Oil Freeze HT-30FD Freeze Dryer Machine
Product Description of HT-030FD Freeze Dryer Machine:
Vacuum freeze dryer is widely used in medicine, pharmacy, biological research, chemical industry, food and other fields. The freeze-dried articles are easy to be stored for a long time. After adding water, they can return to the state before freeze-drying and maintain the original biochemical characteristics. FD series electric heating series freeze dryer can accelerate drying efficiency and save energy. It can provide a variety of freeze-drying scheme settings. Through the scheme settings, the heating forms a curve with the changes of temperature and time. It is suitable for scientific research experiment or small batch processing and production.
Main Feature of HT-30FD Freeze Dryer Machine:
1)the machine adopts imported compressor for refrigeration, with rapid refrigeration and low cold trap temperature.
2)7-inch true color touch LCD control system is adopted, which is simple, convenient and powerful.
3)industrial embedded operating system, ARM9 core control circuit design, 32m memory, 128M flash, fast operation response speed and large amount of stored data.
4)the control system automatically saves freeze-drying data and can view it in the form of real-time curve and historical curve, and the whole freeze-drying process is
5)the drying room adopts colorless and transparent drying room, the sample is clear and intuitive, and the whole process of freeze-drying can be observed.
6) the connection between the vacuum pump and the main engine adopts international standard KF quick connector, which is simple and reliable
7) the machine can store multiple freeze-drying curves, extract data to the computer with USB flash disk, browse and print freeze-drying curves on the computer.
8)the diaphragm adopts 36V safety voltage silicone rubber electric heating plate as the heating element. The unique calculation method of temperature rise curve makes the temperature rise more stable, safer and more accurate.
9)diaphragm heating has overtemperature protection function and compressor delay protection function.
10)diaphragm temperature is adjustable, controllable, groping, pilot test and production process.
Optional: (additional cost)
optional dual compressor cascade refrigeration with mature technology and low temperature (applicable to - 80 ℃ equipment)
optional external bottle hanging device, such as eggplant bottle interface or wide mouth bottle interface.
imported brand vacuum pump is optional to ensure more reliable operation.
optional vacuum adjustment.
eutectic point test function can be selected to facilitate exploring the freeze-drying process of samples.
Technical Parameters of HT-30FD Freeze Dryer Machine:
| Freeze drying area | 0.4㎡ |
| Water capture capacity | 6kg / batch |
| Disk solution | 4L |
| Number of layers | 4 |
| Partition size | 300x340mm |
| Temperature range of plate layer: | - 50 ~ + 70 ℃ (no-load) |
| Minimum temperature of cold trap: | ≤ - 60 ℃ (no-load) |
| Limit vacuum: | ≤ 5 Pa (no load) |
| Power | 2.7Kw |
| Overall dimension | 880(L)x750(W)x1250(H)mm |
| Vials for Xilin | Φ 12mm2592pieces, Φ 16mm1440 pieces, Φ 22mm780 PCs |
| Overall weight | 400kg |
| Ambient temperature: | ≤ 25 ℃ |

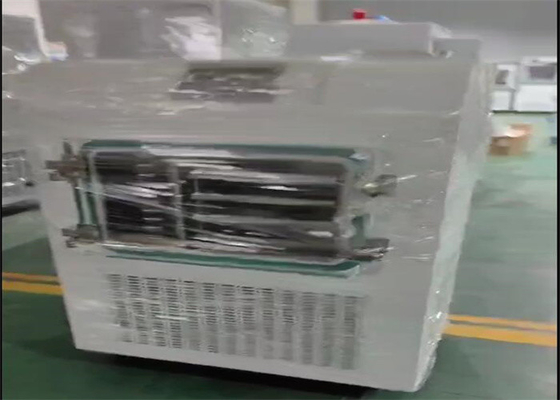

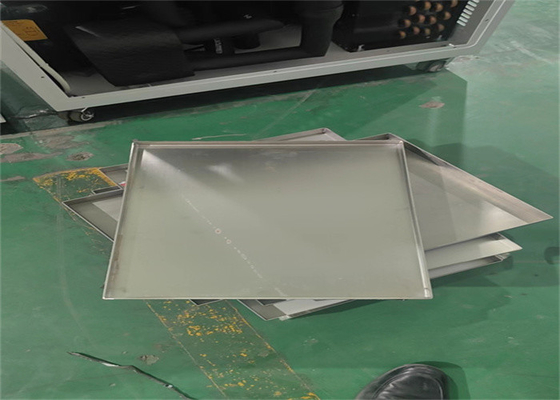

Application Photos of Freeze Dryer Machine
