| Drying Area: | 2.25m2 | Maximum Water Catch: | 40kg/batch |
|---|---|---|---|
| Overall Dimension: | 2100mm*1400mm*2100mm | Loadable Material: | 21L |
| Minimum Temperature Of Cold Trap: | ≤ - 75 ℃ (no-load) | Overall Power: | 15kw |
| Highlight: | Vegetable Preservation Freeze Drying Machine,Fruit Preservation Freeze Drying Machine,2.25m2 Freeze Drying Machine |
||

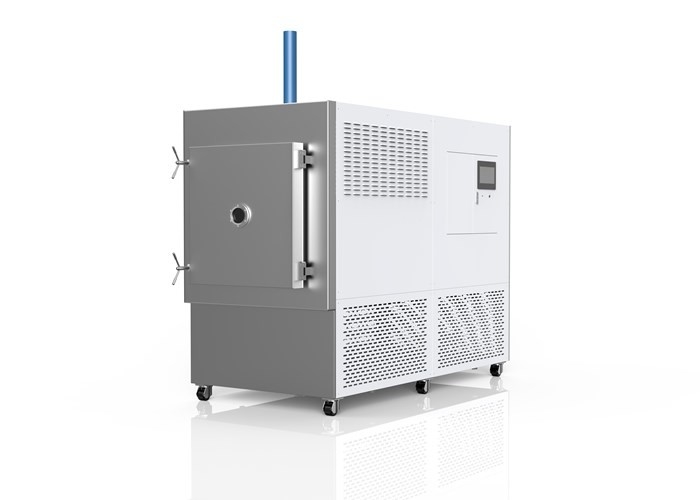

HT-200FDA-Y 2.25㎡ Freeze Drying Machine For Fruit, Food And Vegetable Preservation
Product Description of Freeze Dryer Machine
The HT-200FDA-Y Freeze Drying Machine is a cutting-edge apparatus designed for pharmaceutical applications, adhering to stringent FDA standards. With a 2.25m2 drying area, this machine excels in preserving biological samples, particularly blood. Its advanced technology ensures precise freeze-drying, maintaining the integrity of pharmaceutical formulations. Featuring user-friendly controls and compliance with regulatory requirements, the HT-200FDA-Y is pivotal in pharmaceutical research and production. This high-capacity freeze-drying unit guarantees the stability of sensitive pharmaceuticals, making it an essential asset for industries prioritizing quality, compliance, and advanced freeze-drying capabilities.
Technical Parameters of Freeze Dryer Machine
| Infrastructure | |
| Product description | HT-200FDA-Y Vacuum Freeze Dryer Machine |
| Shelf effective drying area | 2.25m2 |
| Maximum water catch | 40kg/batch |
| Power supply | Three phase 380V/55Hz |
| Overall dimension | 2100*1400*2100mm |
| Largest dish of liquid | 21L |
| Installed power | 15Kw |
| Whole machine structure | Spray-piece |
| Cast of outsourcing | Spray-paint, the front shell is 304L stainless steel |
| Overall weight | 1800kg |
| Bin body (drying chamber) | |
| Bin body material | SU304, 5mm thickness |
| Door lock type | Handle door lock |
| Opening angle | ＞110℃ |
| Storehouse door material | ACRYLIC |
| Hull roughness | Ra＜0.5um |
| Heat preservation material | Polyurethane foam + insulation material |
| Plate layer | |
| Layer plate material | SUS304 |
| Number of layers | 5+1 |
| Plate roughness | Ra＜0.4um |
| Stainless steel tray | Customized according to customer requirements |
| Layer spacing | 80mm |
| Layer size | 600*750mm |
| Shelf temperature | - 50 ℃ - + 70 ℃ |
| Temperature difference | ±1℃ |
| Heating power | 2.4Kw/220V/50Hz |
| Water trap | |
| Water catch trap material | SUS304 |
| Shape of the trap | Circular |
| Coil material | SUS304 |
| Form | Coil |
| Defrost way | Electric defrosing |
| Temperature sensor | Pt100 |
| Maximum water catch | 40kg/batch |
| Cold trap minimum temperature | ≤-75℃ (no-load) |
Main Features of Freeze Dryer Machine
1. Freeze-Drying Technology: Utilizes a process of freezing and then removing moisture by sublimation, preserving the structure and properties of the material.
2. Vacuum System: Creates a low-pressure environment for efficient sublimation of frozen water, facilitating dehydration.
3. Temperature Control: Precise temperature regulation to ensure optimal freeze-drying conditions for various materials.
4. Modular Design: Often comprises modular trays or shelves for flexible processing and batch drying of different quantities.
5. User-Friendly Interface: Intuitive controls and programmable settings for ease of operation.
6. Versatility: Applicable to various industries, including pharmaceuticals, biotechnology, food, and research.
7. High Capacity: Capable of handling large quantities of material for efficient production.
8. Preservation of Properties: Maintains the original structure, biochemical characteristics, and properties of the material being dried.
9. Vacuum Monitoring: Includes systems for monitoring and adjusting vacuum levels during the process.
10. Durable Construction: Built from materials resistant to corrosion and wear, ensuring longevity and reliability.
11. Condenser System: Efficient condensation of vaporized water for removal during the process.
12. Integrity Preservation: Preserves the integrity of sensitive materials, such as pharmaceuticals and biological samples.
13. Safety Features: Incorporates safety measures to protect both the equipment and the materials being processed.
14. Compliance with Standards: Adheres to industry regulations and standards, ensuring quality and safety.
Application Photos of Freeze Dryer Machine
