Product Details:
Payment & Shipping Terms:
|
| Drying Area: | 0.12m2 | Maximum Water Catch: | 3kg/batch |
|---|---|---|---|
| Overall Dimension: | 640*430*370+465mm | Extraction Rate: | 2L/S |
| Minimum Temperature Of Cold Trap: | ≤ - 65 ℃ (no-load) | Overall Power: | 950W |
| Highlight: | Fruit Preservation Freeze Dryer Machine,Four Material Trays Freeze Drying Machine,0.12m2 Freeze Dryer Machine |
||

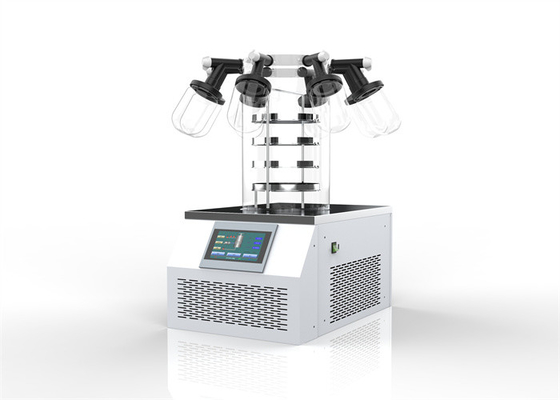

HT-10N/CG 0.12m2 Four Material Trays Freeze Drying Machine For Fruit, Food And Vegetable Preservation
Product Description of Freeze Dryer Machine
HT-10N/CG vacuum freeze dryer is widely used in medicine, pharmacy, biological research, chemical industry, food, and other fields. Freeze-dried items are easy to store for a long time. After adding water, they can be restored to the state before freeze-drying and maintain their original biochemical properties. The HT-10N series desktop freeze-drying machine is suitable for laboratory use or small-scale production and can meet the routine freeze-drying requirements of most laboratories.
Technical Parameters of Freeze Dryer Machine
| Product name | HT-10N/CG Freeze Dryer (-65 ℃ Multi Manifold Standard Type+Wide Mouth Bottle) |
| Freeze Dried Area | 0.12m2 |
| Cold Trap Temperature (No-Load) | ≤ -65 ℃ |
| Vacuum Degree | ≤ 5Pa |
| Water Catched Capacity | 3Kg/Batch |
| Extraction Rate | 2L/S |
| Shelf Layer | 4 Layers |
| Number Of Material Trays | 4 |
| Material Tray Size | φ 200mm |
| Plate Spacing | 70mm |
| Freeze Drying Bottles | 8 pieces (600ml * 4, 1200ml * 4) |
| Cooling Method | Air Cooling |
| Overall Power | 950W |
| External Dimensions | 640*430*370+465mm |
| Material That Can Be Loaded | 1.2L (Material Thickness 10mm) |
| Can Hold Penicillin Bottles |
Ф12mm 920 pieces Ф16mm 480 pieces Ф22mm 260 pieces |
| Operating Environment Temperature | ≤ 25 ℃ |
| Power Supply | 220V 50Hz |
Main Features of Freeze Dryer Machine
1. The machine adopts an imported brand Cisco compressor for refrigeration, with stable performance, rapid refrigeration, low cold trap temperature, and strong water capture capacity.
2. The cold trap has a large opening and is made of corrosion-resistant 304 stainless steel, which meets the requirements of GLP; It has the function of sample pre-freezing in the early stage, and there is no need to be equipped with an ultra-low temperature refrigerator or treated with liquid nitrogen..
3. The 7-inch true color LCD touchscreen control system is adopted, which is simple and convenient to operate and has powerful functions. It is used as the man-machine interface and Chinese (English) convertible interface. The system is equipped with various sensors to display the working time, cold trap temperature, sample temperature, and vacuum degree in curve and digital form, and record the drying curve and data.
4. Industrial embedded operating system with fast operation response speed and a large amount of stored data; It is stored in an Excel file, which can store a large amount of measurement data, and is equipped with a USB communication interface. The experimental data can be extracted with one key on a USB flash disk, and the printed data can be browsed through the computer.
5. An intelligent data recording system can automatically save freeze-drying data, continuously record real-time data, generate tables, and view them in the form of real-time curves and historical curves, and the whole freeze-drying process is clear.
Application Photos of Freeze Dryer Machine
