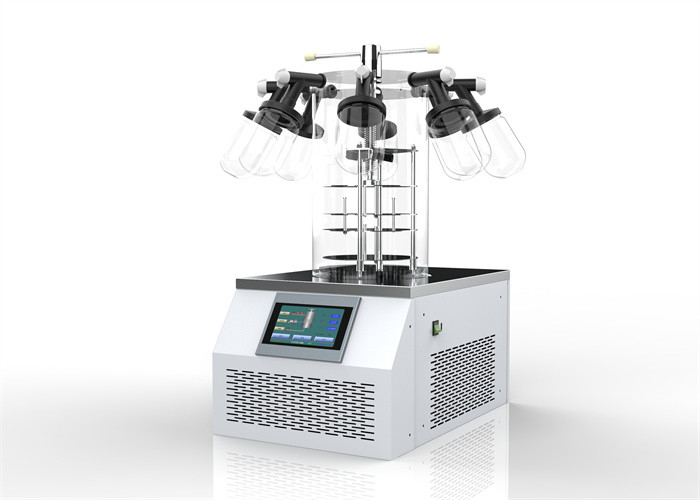

HT-10N/DG 2L/S Air Cooling Freeze Drying Machine For Food Preservation
Product Description of Freeze Dryer Machine
HT-10N/DG freeze dryer is widely used in medicine, pharmaceuticals, biological research, the chemical industry, food, and other fields. Freeze-dried products are easy to store for long periods. After adding water, it can return to its state before freeze-drying and maintain its original biochemical characteristics.
Technical Parameters of Freeze Dryer Machine
| Product name | HT-10N/DG Freeze Dr (-65 ℃ Multi Manifold Gland Type+Wide Mouth Bottle) |
| Freeze Dried Area | 0.08m2 |
| Cold Trap Temperature (No-Load) | ≤ -65 ℃ |
| Vacuum Degree | ≤ 5Pa |
| Water Catched Capacity | 3Kg/Batch |
| Extraction Rate | 2L/S |
| Shelf Layer | 3 Layers |
| Number Of Material Trays | 3 |
| Material Tray Size | φ 180mm |
| Plate Spacing | 70mm |
| Freeze Drying Bottles | 8 pieces (600ml * 4, 1200ml * 4) |
| Cooling Method | Air Cooling |
| Overall Power | 950W |
| External Dimensions | 640*430*370+535mm |
| Material That Can Be Loaded | 0.8L (Material Thickness 10mm) |
| Can Hold Penicillin Bottles |
Ф12mm 560 pieces Ф16mm 285 pieces Ф22mm 165 pieces |
| Operating Environment Temperature | ≤ 25 ℃ |
| Power Supply | 220V 50Hz |
Main Features of Freeze Dryer Machine
1. The starting temperature of the vacuum pump can be preset. When it is lower than the set temperature, the vacuum pump can be started effectively to prevent a large amount of water vapor from entering the pump and extend the service life of the vacuum pump.
2. With compressor secondary start delay protection.
3. The drying chamber adopts a colorless and transparent one-time injection molding polycarbonate drying chamber, which is corrosion-resistant, nonfragile, nonadhesive, high transparency, strong tightness, clear and intuitive samples, and can observe the whole process of freeze-drying.
4. It has the function of cold trap electric heating and defrosting to shorten the waiting time for secondary use.
5. The connection between the vacuum pump and the main engine adopts an international standard KF quick connector, which is simple and reliable.
6. All stainless steel drain and inflation valves, are safe, corrosion-resistant, and leak-free.
7. User password can be set, and operation management can be performed by authority.
Application Photos of Freeze Dryer Machine
