| Freeze Drying Area: | 0.08m2 | Overall Dimension: | 640 * 430 * 370 +500mm |
|---|---|---|---|
| Extraction Rate: | 2L/S | Minimum Temperature Of Cold Trap: | ≤ - 65 ℃ |
| Overall Power: | 950W | ||
| Highlight: | 2l/S Freeze Drying Machine,0.08m2 Freeze Drying Machine,Medical Preservation Freeze Drying Machine |
||

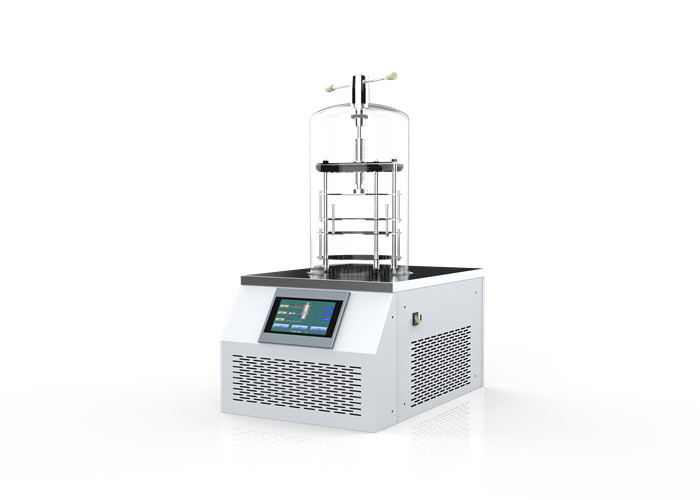

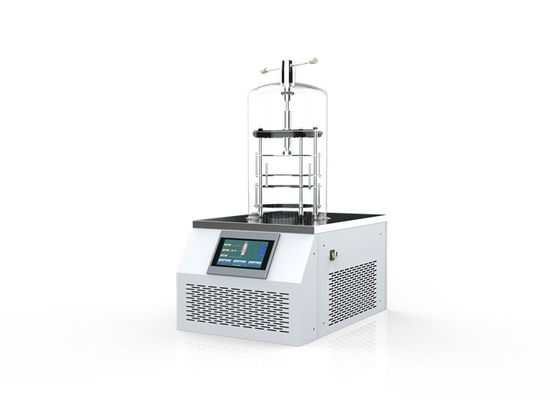

HT-10N/B 0.08m2 2l/S Air Cooling Freeze Drying Machine For Medical Preservation
Product Description of Freeze Dryer Machine
HT-10N/B freeze dryer machine is widely used in medicine, pharmacy, biological research, chemical industry, food, and other fields. Freeze-dried items are easy to store for a long time. After adding water, they can be restored to the state before freeze-drying and maintain their original biochemical properties. The HT-10N series desktop freeze-drying machine is suitable for laboratory use or small-scale production and can meet the routine freeze-drying requirements of most laboratories.
Technical Parameters of Freeze Dryer Machine
| Product name | HT-10N/B Freeze Dryer Machine (- 65 ℃ Gland Type) |
| Freeze Drying Area | 0.08㎡ |
| Cold Trap Temperature (No Load) | ≤ - 65 ℃ |
| Vacuum Degree | ≤ 5pa |
| Water Catching Capacity | 3kg / Batch |
| Extraction Rate | 2L / S |
| Shelf Layers | 3 Layers |
| Number Of Material Trays | 3 |
| Material Tray Size | φ 180mm |
| Plate Layer Spacing | 70mm |
| Cooling Mode | Air Cooling |
| Overall Power | 950W |
| Overall Dimension | 640 * 430 * 370 +500mm |
| Loadable Material | 0.8L (Material Thickness: 10mm) |
| Vials can be loaded |
Ф 12mm 560 pieces Ф 16mm 285 pieces Ф 22mm 165 pieces |
| Operating Ambient Temperature | ≤ 25 ℃ |
| Power Supply | 220V 50Hz |
Main Features of Freeze Dryer Machine
1. Freeze-Drying Technology: Utilizes a process of freezing and sublimation to remove moisture while preserving the structure and properties of the material.
2. Vacuum System: Creates a low-pressure environment, allowing frozen water to transition directly from solid to vapor.
3. Temperature Control: Precise temperature regulation for optimal freeze-drying conditions.
4. Modular Design: Typically equipped with trays or shelves for batch processing of different quantities.
5. User-Friendly Interface: Intuitive controls and programmable settings for ease of operation.
6. Versatility: Applicable to pharmaceuticals, biotechnology, food, and research.
7. High Capacity: Capable of handling large quantities for efficient production.
8. Preservation of Properties: Maintains the original structure, biochemical characteristics, and properties of the material.
9. Vacuum Monitoring: Includes systems for monitoring and adjusting vacuum levels during the process.
10. Durable Construction: Built from corrosion-resistant materials for longevity and reliability.
Application Photos of Freeze Dryer Machine
