Product Details:
Payment & Shipping Terms:
|
| Drying Function: | With Drying Function | Computer Control Panel: | Computer Control Panel |
|---|---|---|---|
| Raw Material: | Waste Paper And Cardboard | Shape: | Can Customize |
| Voltage: | 220v/380v | ||
| Highlight: | semi-automatic egg tray machine,Paper Pulp egg tray machine,Egg Tray Machine With Dryer |
||

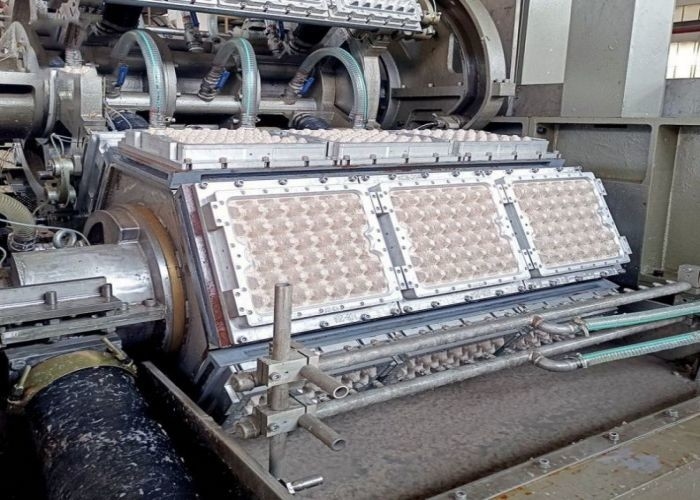

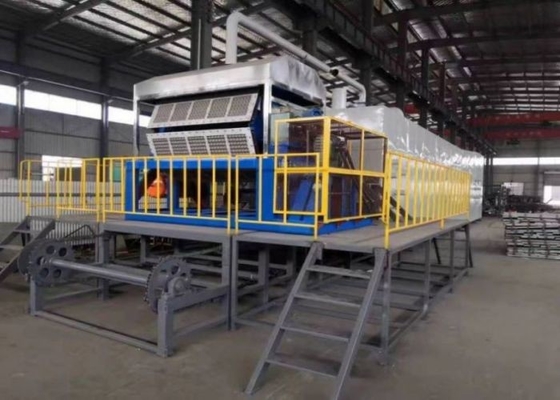

Egg Tray Carton Making Machine
1.Pulp molding automatic egg tray production line mainly uses waste paper as raw material,which is rich
in source and low in price, which belongs to the comprehensive development and utilization of waste.
2.Waste utilization, low cost. Most of the raw materials can be obtained directly from waste paper factories
nd garbage dumps, and the cost is low. High economic efficiency.
Feature
1. Easy and safe to operate.
2. Global famous brand of electric parts make stable running paper egg tray machine.
3. Optimized design with new technology, leading to high efficiency paper egg tray machine.
4. Large capacity, Water content is low, Save the cost of drying.
5. The use of mechanical structure to ensure that the mold close on both sides evenly.
6. Perfect malfunction checkout system and motor protecting system guarantee safe running, can be adjusted independently.
Egg Tray Machine Tableware Paremeters
| Model | HT-1*3 | HT-1*4 | HT-3*4 | HT-4*4 | HT-3*8 | HT-4*8 | HT-5*8 |
| Capacity | 1000pcs/h | 1500pcs/h | 2000pcs/h | 2500pcs/h | 3000pcs/h | 4000pcs/h | 5000pcs/h |
| Total Power | 32kw | 40kw | 65kw | 82kw | 95kw | 112kw | 121kw |
| Paper Consumption | 80kg/h | 120kg/h | 160kg/h | 200kg/h | 240kg/h | 320kg/h | 400kg/h |
| Water Consumption | 160kg/h | 240kg/h | 320kg/h | 400kg/h | 480kg/h | 640kg/h | 800kg/h |
| Electric Consumption | 18kw/h | 32kw/h | 45kw/h | 58kw/h | 65kw/h | 78kw/h | 95kw/h |
| Worker | 3-4 | 3-4 | 4-5 | 4-5 | 5-6 | 3-4 | 3-4 |
Packaging
1. Out package: Standard marine export plwywood cases;
2. Innner package:Stretch film and plastic film for humidity;
3. Customized according to your requirement.
Shipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.
Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.
