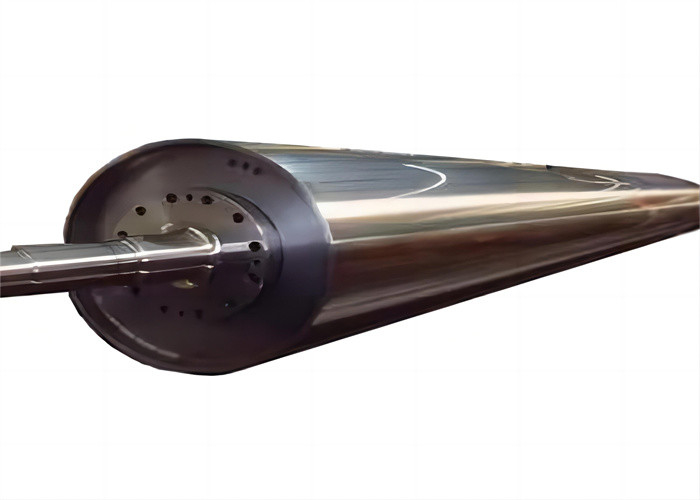

Q345B Flow System Long Life Time Cooling Roller For Bopp Bopet Film

Cooling Roller for BOPP/BOPET FILM LINE

Cooling Roller Introduction:

At present, the internal structure of the heat transfer roller is divided into a double-layer single-flow setting and a double-layer double-flow setting. The internal medium is water or heat transfer oil. The internal structures of these two types are different, and the manufacturing processes are also different. Have a big impact on costs.

1. Internal structure of expanded single-flow heat transfer roller: This model heat transfer cooling roller is composed of an outer shell, an inner shell and a spiral baffle on the inner shell. Water or thermal oil circulates from the pipe into the internal single-flow thermal pipe, starting from the other side wall, thereby removing the heat. To achieve oxygen purpose.

2. Internal structure of double-layer double-flow heat-conducting roller: This model of heat-conducting cooling roller is composed of an outer shell, an inner shell and a spiral baffle on the inner shell. Therefore, unlike the above, this heat-conducting roller adopts a double-layer double flow. Aluminum alloy recycling method. Water or thermal oil circulates from the duct pipe into the heat transfer duct through the internal flow. Its dual efficiency is high, the production process is complex, and the cost is high.

Cooling Roller Production Crafts:
