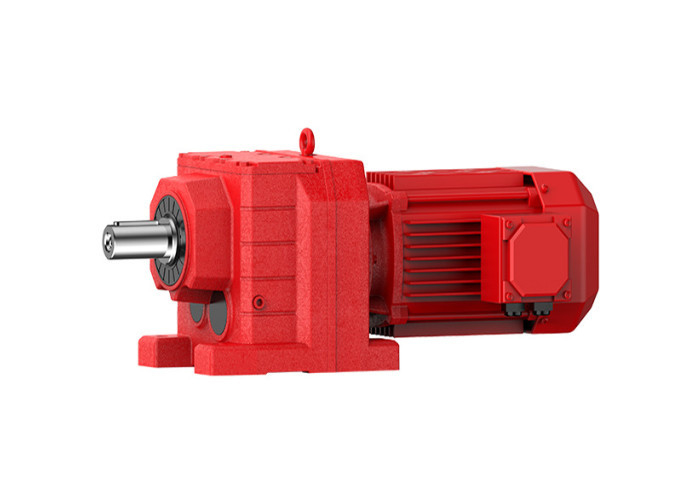

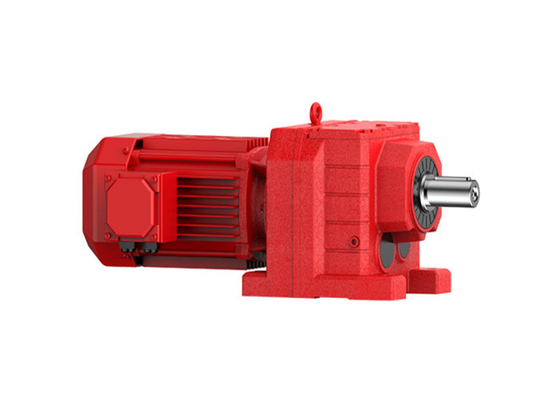

R Series High Load And High Torque Variator Gearbox Helical Reducer

R Series High Torque Variator Gearbox Helical Reducer is widely used in metallurgical mining, petrochemical industry, building materials machinery, railway vehicles, port ships, textile printing and dyeing, food packaging, paper printing, lifting and conveying, logistics loading and unloading, agricultural, animal husbandry and fishery machinery, light industry leather and other light and heavy industrial machinery transmission fields.

Material of R Series High Torque Variator Gearbox Helical Reducer

1.Box body: HT250 high-strength cast iron, injection-shaped inner cavity, effectively reduce parts wear；

2.Gear: 20CrMo alloy steel, carbon-nitrogen co-infiltration treatment (maintain tooth surface hardness HRC60 after fine grinding)；

3.Flat key: 45 steel, surface hardness HRC50.

Model of R Series High Torque Variator Gearbox Helical Reducer

R series single-stage output type: RX37 reducer, RX57 reducer, RX67 reducer, RX77 reducer, RX87 reducer, RX97 reducer, RX107 reducer, RX127 reducer

R series single-stage output type with flange: RXF37 reducer, RXF57 reducer, RXF67 reducer, RXF77 reducer, RXF87 reducer, RXF97 reducer, RXF107 reducer, RXF127 reducer

R series multi-stage output type: R37 reducer, R47 reducer, R57 reducer, R67 reducer, R77 reducer, R87 reducer, R97 reducer, R107 reducer, R137 reducer, R147 reducer, R167 reducer

R series multi-stage output type with flange: RF37 reducer, RF47 reducer, RF57 reducer, RF67 reducer, RF77 reducer, RF87 reducer, RF97 reducer, RF107 reducer, RF137 reducer, RF147 reducer, RF167 reducer

The R series reducer can be combined with any reducer model of the F series reducer, K series reducer, and S series reducer.
