Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Oxide | Open Porosity: | 40% - 90% |
|---|---|---|---|
| Pore Size: | 0.25 Microns To 90 Microns | Dimensions: | 1/12 To 8/12 Square Meter |
| Highlight: | Dehydration Ceramic Membrane Filter Plate,iron concentrates Ceramic Membrane Filter Plate,Wear Resistance Ceramic Membrane Filter Plate |
||

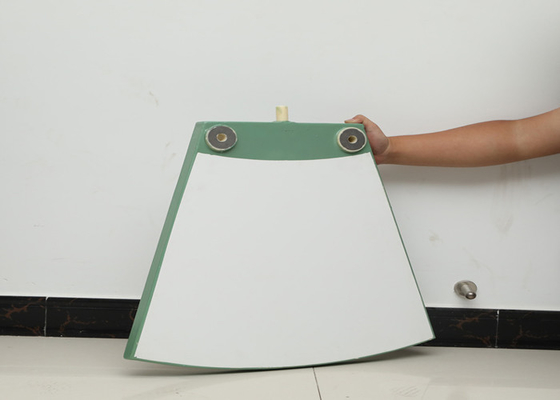

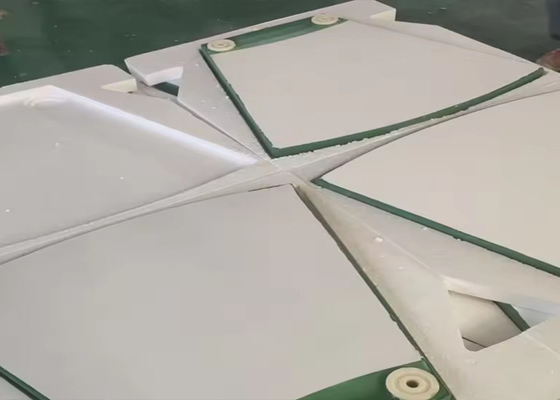

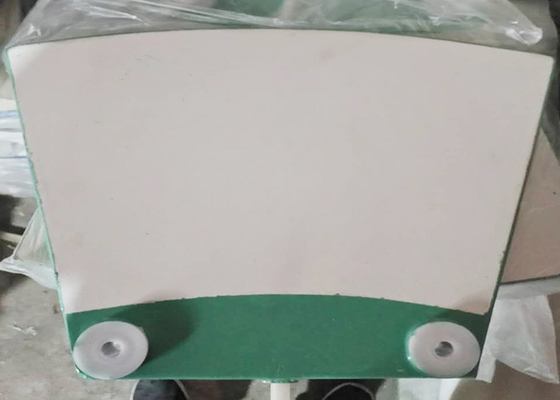

Description:
Ceramic filter plates are indispensable and important equipment in mining production and play a key role. Its unique "water-permeable but air-tight" performance enables the vacuum degree of the filtration process to reach above 0.096-0.097MPa, thus ensuring its good dehydration effect. It greatly improves production efficiency and product quality.
Features:
Ceramic filter plates are famous for their special materials, high temperature resistance, corrosion resistance, and wear resistance. They also have a microporous structure, which allows them to operate stably under high temperature and high pressure and maintain filtering efficiency. In addition, mining ceramic filter plates also have good wear resistance, which allows them to operate stably for a long time, reduce replacement frequency, and reduce production costs.
Technical parameters:
| Filtration flux (clean water pressure 0.1Mpa): | 800-1000L·centipoise/h·m2 | |
| Air pressure backwash test pressure (wet state): | ≥0.1Mpa | |
| Operation backwash pressure: | ≤0.1Mpa | |
| Ultrasonic combined chemical cleaning pressure: | ≤0.1Mpa | |
| Assembly precision: | Parallelism with the plate membrane surface: | ±0.1mm |
| Height with the plate membrane surface: | 8mm±0.1mm | |
| Disc precision: | Assembly hole midpoint and diagonal error: | ≤2mm |
| Error between each plate: | 3mm±1mm | |
|
Filter membrane wear resistance time: (Not damaged by scrapers or other hard objects) |
≥7000h | |
| Porosity: | ≥42% | |
| Flexural strength: | ≥30Mpa | |

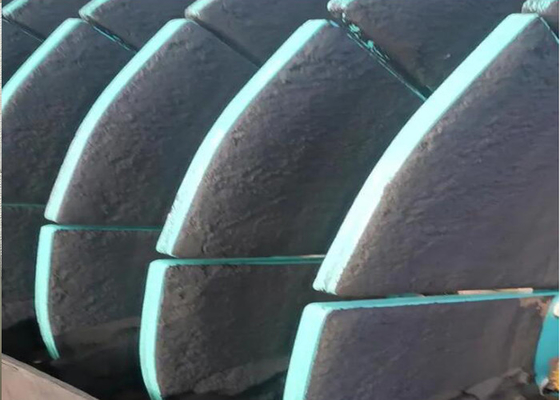

Working Site of our Ceramic Filter Plate:
