| Manufacture Method: | Standard Ans OEM | Color: | As Per Request |
|---|---|---|---|
| Brand: | Huatao | Application: | Machinery, Agricultural Machinery, Industrial Automation Equipment, Chemical Industry |
| Packaging: | Wooden Case | Wrranty: | 3 Years |
| Highlight: | Excavators Slewing Gear Drives,Drilling Platforms Slewing Gear Drives,Cranes Slewing Gear Drives |
||

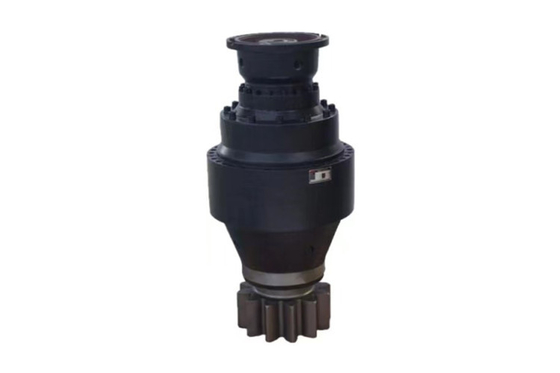

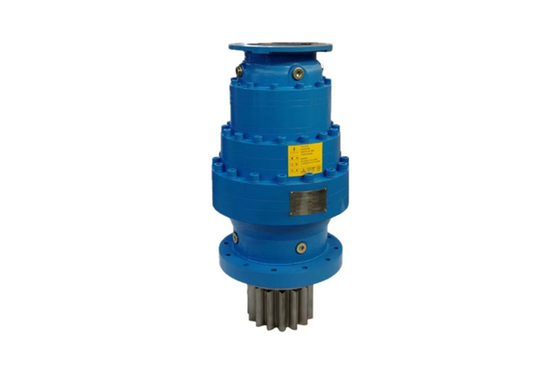

Slewing Gear Drives For Cranes, Excavators And Drilling Platforms Machines are proven in many different applications, such as cranes, excavators, and drilling platforms. Our gear units for slewing gear drives have a modular design.
They can be combined with a long or short lantern gear drive on the output side. The mounted output pinions are manufactured according to the customer's specifications. On the input side, we offer solutions for both electric motors and high-speed or low-speed hydraulic motors, some of which are already standardized.
One frequently requested alternative, particularly as a gear unit for slewing gear drives in bucket wheel excavators, consists of a planetary gear unit with a bevel or bevel helical gear unit on the input side. The drive motor and a brake are arranged on a bracket on the gear unit, so that the system no longer needs to be aligned on site. A brake is always mounted between the motor and the gear unit in order to fix the boom in a defined position. An overload safety mechanism can additionally be provided to protect the boom and the drive against inadmissibly high loads.
Key Feture of Slewing Gear Drives For Cranes, Excavators And Drilling Platforms Machines:
Specification of Slewing Gear Drives For Cranes, Excavators And Drilling Platforms Machines:
| Ratio range | 3.15-9000 |
| Input power | 0.25-55KW |
| Permit torque range | ≤ 800000N. M |
| Output speed | 0.425-445 r/min |
Applications Of Slewing Gear Drives:
1. Can you customize according to our requirements?
Yes, we can design nonstandard products according to customer's drawing and sample.
2.What 's your product range?
speed reducer,gearbox,gear motor,pump,crusher
3. Reason why we buy from you?
Wth over 20 years of production experience and credibility. With professional engineer team, advanced technology production and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken.
