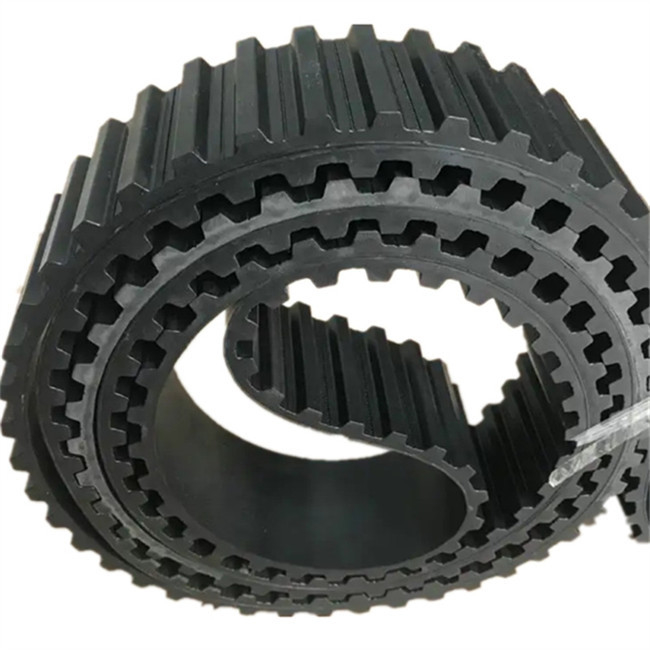

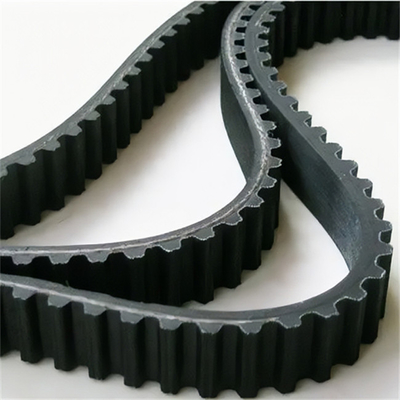

Rubber Timing Belt Trapezoidal Tooth
Trapezoidal timing belt is a transmission device, which mainly consists of three parts: belt body, strong conveying section and coupling. Its specifications include length, tooth pitch, width, etc. These specifications directly affect the performance and life of the synchronous belt drive. Correct selection of the specifications and parameters of the trapezoidal timing belt can ensure the stability of the transmission and the longevity of the life.
1.Length
If the length is too short, it will easily lead to overloading of bearings, chains and other mechanisms, shortening the life of the synchronous belt; if the length is too long, it will easily lead to unstable transmission.
2.Tooth pitch
The larger the tooth pitch, the smaller the speed ratio, and the smaller the transmission torque. The smaller the tooth pitch, the greater the transmission torque.
3. Width
The larger the belt width, the greater the power that can be transmitted and the higher the load-bearing capacity of the synchronous belt.
Our normal specifications:
|
Model |
Pitch(mm) |
Tooth height(mm) |
Belt thickness(mm) |
Angle |
|
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XL |
5.080 |
1.27 |
2.30 |
40 |
|
L |
9.525 |
1.91 |
3.60 |
40 |
|
H |
12.70 |
2.29 |
4.30 |
40 |
|
XH |
22.225 |
6.35 |
11.20 |
40 |
|
XXH |
31.750 |
9.53 |
15.70 |
40 |
Features:
The belt teeth are constructed from a reinforced neoprene compound containing aramid, which ensures the belt teeth have high shear strength.
High tensile strength, fiberglass cord provides high strength, high flexibility and high tensile elongation.
Neoprene protects it from dirt, grease, and moisture.
Application areas:
Printing, packaging, papermaking, machine tools, textiles, engraving, petrochemicals and other environments that require high load and high speed drive devices.
Trapezoidal timing belt is a transmission device, which mainly consists of three parts: belt body, strong conveying section and coupling. Its specifications include length, tooth pitch, width, etc. These specifications directly affect the performance and life of the synchronous belt drive. Correct selection of the specifications and parameters of the trapezoidal timing belt can ensure the stability of the transmission and the longevity of the life.
1.Length
If the length is too short, it will easily lead to overloading of bearings, chains and other mechanisms, shortening the life of the synchronous belt; if the length is too long, it will easily lead to unstable transmission.
2.Tooth pitch
The larger the tooth pitch, the smaller the speed ratio, and the smaller the transmission torque. The smaller the tooth pitch, the greater the transmission torque.
3. Width
The larger the belt width, the greater the power that can be transmitted and the higher the load-bearing capacity of the synchronous belt.
Our normal specifications:
| Model | Pitch(mm) | Tooth height(mm) | Belt thickness(mm) | Angle |
| MXL | 2.032 | 0.51 | 1.14 | 40 |
| XL | 5.080 | 1.27 | 2.30 | 40 |
| L | 9.525 | 1.91 | 3.60 | 40 |
| H | 12.70 | 2.29 | 4.30 | 40 |
| XH | 22.225 | 6.35 | 11.20 | 40 |
| XXH | 31.750 | 9.53 | 15.70 | 40 |
Features:
The belt teeth are constructed from a reinforced neoprene compound containing aramid, which ensures the belt teeth have high shear strength.
High tensile strength, fiberglass cord provides high strength, high flexibility and high tensile elongation.
Neoprene protects it from dirt, grease, and moisture.
Application areas:
Printing, packaging, papermaking, machine tools, textiles, engraving, petrochemicals and other environments that require high load and high speed drive devices.
