AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core

AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core
AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core

Large Image :  AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core

Product Details:
Place of Origin: CHINA
Brand Name: HUATAO
Model Number: T001
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: 10-1000USD per pc
Packaging Details: Standard exporting packing
Delivery Time: 7
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs per day
Detailed Product Description
Color: Black Materials: Rubber
Lifetime: Long Enough Samples: For Free
Highlight:

AT5 AT10 AT20 Rubber Timing Belt

,

Seamless Fiber Core Rubber Timing Belt

AT5 AT10 AT20 Rubber Timing Belt with Seamless Fiber Core



Trapezoidal timing belt is a synchronous belt used to transmit power, consisting of trapezoidal teeth arranged in rows. It transmits power from one shaft to another through the force of gravity and friction and is widely used in various mechanical equipment. It has the advantages of smooth transmission, low noise, compact structure and high transmission power.



Structure and composition:

The structure of the Trapezoidal timing belt consists of tooth shape, bottom, side and back. The tooth shape is a key part, and its shape determines the transmission performance of the belt. The bottom is a supporting section that provides additional strength and stiffness. Sides are the side portions of the strap that provide additional protection and guidance. The back is the back of the trapezoidal timing belt, which can increase the strength and stability of the belt.



Our normal specifications:

Model

Pitch(mm)

Tooth height(mm)

Belt thickness(mm)

Angle

MXL

2.032

0.51

1.14

40

XL

5.080

1.27

2.30

40

L

9.525

1.91

3.60

40

H

12.70

2.29

4.30

40

XH

22.225

6.35

11.20

40

XXH

31.750

9.53

15.70

40



Application:

1. Automobile industry: Trapezoidal timing belt is widely used in automobile engine systems to transmit power and control the movement of the car.

2. Machinery manufacturing: Various mechanical equipment, such as machine tools, printing machines, packaging machines, etc., can be driven by trapezoidal timing belts.

3. Home appliance industry: Some components in household appliances that need to transmit power, such as mixers, agitators, etc., can also use trapezoidal timing belts as transmission devices.



Advantage:

1. Higher transmission efficiency: The transmission efficiency of the trapezoidal timing belt is higher, and the rotation speed during transmission is also relatively high. It can transmit more goods in the same time, which is beneficial to improving production efficiency.

2. Strong load capacity: It can carry more goods while avoiding damage to the machine due to overload.

3. Strong and durable: The structural design of the trapezoidal timing belt is rigorous and reasonable, so it requires less maintenance and can have a longer service life.



Reference Photos:

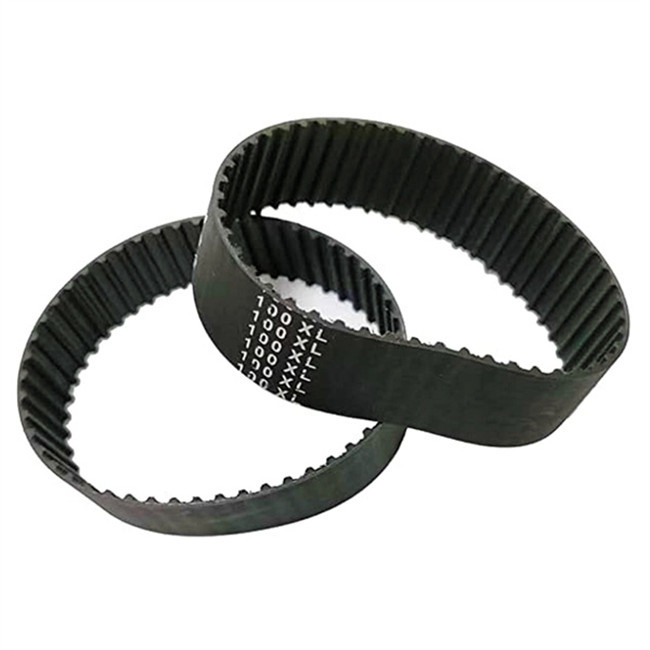

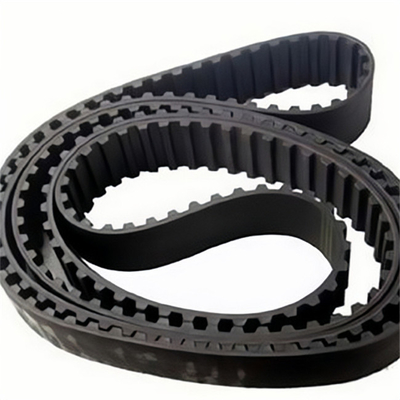

AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core 0AT5 AT10 AT20 Rubber Timing Belt With Seamless Fiber Core 1
