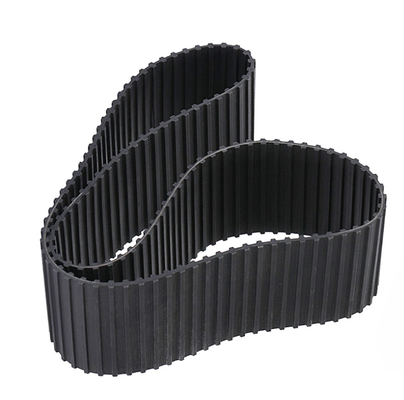

Double Side Teeth T Type XXH XL XH MXL Type Industrial Timing Belt

Double Side teeth T Type XXH XL XH MXL Type Industrial Timing Belt

Double sided trapezoidal timing belt have teeth on both sides to provide synchronization from both driving surfaces.

Compared to single-sided timing belts, double-sided nylon fabric provides the same load-carrying capacity, the belt capacity is comparable to standard single-sided timing belts, and fiberglass tensile cords provide high strength, excellent bending life, and high elongation resistance.

The main body is neoprene, which mainly provides protection against grease, oil and moisture.

Accurate transmission, not easy to slip, Stable and durable performance,Super strong tensile force, suitable for high load and high speed transmission requirements.

Technical parameter:

Features:

1. High transmission efficiency: trapezoidal timing belt transmission is a suction transmission method. The tooth-shaped teeth can form adhesive friction on the contact surface, so the transmission efficiency is relatively high, reaching more than 96%.

2. Smooth operation: Since the tooth shape of this transmission method can effectively absorb, there will be no slippage during operation, thus ensuring smooth operation.

3. Accurate transmission ratio: Since the trapezoidal timing belt transmission will not elastically deform during the transmission process, it can ensure that the transmission ratio is accurate and meet the required accuracy requirements.

4. Large torque and large load. More goods can be transported in the same time, which is beneficial to improving production efficiency.

5. Simple structure, low manufacturing cost and wide application range.

Application areas:

Printing, packaging, papermaking, machine tools, textiles, engraving, petrochemicals and other environments that require high load and high speed drive devices.

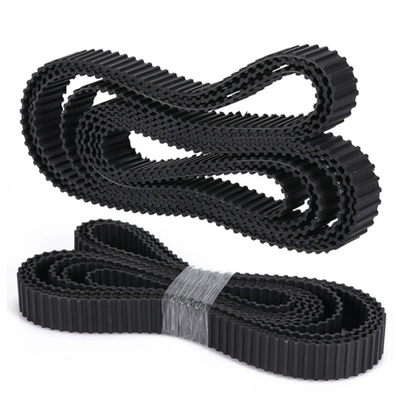

Photos Reference:
