Double Sided Tooth Rubber Timing Belt Power Transmission Belts

Double-Sided Tooth Rubber Timing Belt Power Transmission Belts

Double-Side Timing Belts have teeth on both sides and are mainly used for double-sided transmission. They have the characteristics of synchronization, simultaneousness and double efficiency.

It not only combines the advantages of gear transmission, chain transmission and belt transmission, but also overcomes the shortcomings of other transmission belts such as slippage and elongation, forming a unique transmission method. It is widely used due to its many advantages such as multi-axis transmission, oil resistance, moisture resistance, and no need for lubrication.

The pitch and tooth shape of the double-sided timing belt are identical to the tooth shape and pitch of the single-sided timing belt.

Double-Sided Timing Belt can be divided into two standard types according to the belt teeth:

DA type double-sided tooth timing belt, the belt teeth on both sides are arranged symmetrically.

DB type double-sided tooth timing belt, the belt teeth on both sides are arranged in staggered positions.

Technical parameters:

Advantage:

1. Accurate transmission, smooth operation, and constant transmission ratio.

2. Smooth transmission, buffering and damping capabilities, and low noise.

3. Easy maintenance, no lubrication required, low maintenance cost.

4. It can be used for long-distance transmission, and the center distance can reach more than 10m.

5. Compared with V-belt transmission, the preload force is small and the load on the shaft and bearings is small.

Application:

Food, automobile, textile, pharmaceutical, printing, paper and other industries.

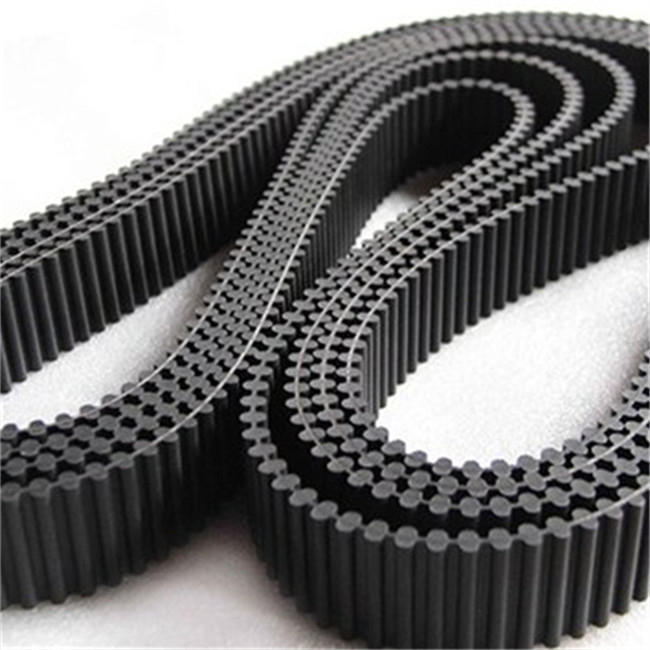

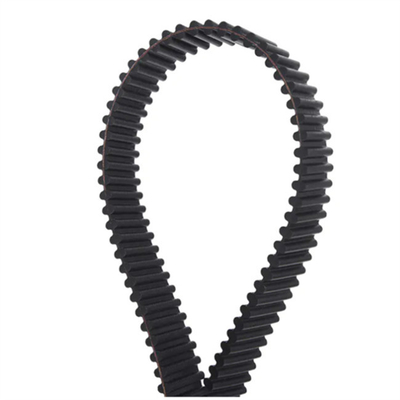

Photos Reference:
