Product Details:
Payment & Shipping Terms:
|
| Color: | White | Materials: | PU |
|---|---|---|---|
| Lifetime: | Long Enough | Samples: | For Free |
| Highlight: | Endless Seamless PU Timing Belt,Steel Cord PU Timing Belt,3M PU Timing Belt |
||
HTD/L/XL/H/XH 3M 5M 8M Endless Seamless PU Timing Belt with Steel Cord
Our timing belts are produced through a stable and reliable manufacturing process. We use high-quality polyurethane materials to make the belts highly wear-resistant and shear-resistant. Various high-performance steel wire cores also ensure good operating results under high loads.
Our Endless PU timing belts are available in a variety of models:
We can also provide special processing timing belts according to different customer needs, with surface coverings such as PU, APL, APP, APT and other hybrid materials to meet the needs of transmission belts under various special working conditions.
T type Industrial Timing Belt parameters:
|
Type |
Pitch(mm) |
Tooth height(mm) |
Belt thickness(mm) |
Angle ° |
|
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XXL |
3.175 |
0.76 |
1.52 |
50 |
|
XL |
5.080 |
1.27 |
2.30 |
50 |
|
L |
9.525 |
1.91 |
3.60 |
40 |
|
H |
12.70 |
2.29 |
4.30 |
40 |
|
XH |
22.225 |
6.35 |
11.20 |
40 |
|
XXH |
31.750 |
9.53 |
15.70 |
40 |
|
T2.5 |
2.5 |
0.7 |
1.30 |
40 |
|
T5 |
5 |
1.2 |
2.20 |
40 |
|
T10 |
10 |
2.50 |
4.50 |
40 |
|
T20 |
20 |
5.00 |
8.00 |
40 |
|
AT5 |
5 |
1.20 |
2.70 |
50 |
|
AT10 |
10 |
2.50 |
5.00 |
50 |
|
AT20 |
20 |
5.00 |
8.00 |
50 |
Mechanical Properties:
1. Dimension stability
2. Low preliminary tension
3. Low noise
4. High resistance to wear
5. free from maintenance
6. Excellent elasticity
Chemical Properties
1. Anti-aging, waterproof solution, prevent UVA, prevent ozone
2. Working temperature: -30degree~+80degree, can withstand highest 110degree within short time -30degree~ +80degree + 110degree
3. Highly prevent oil & grease
4. Resistance to most acid, alkali corrosion
Application:
Used in Textile, Printing and Chemical Machine and Medical Equipment, etc...
Wide range of molds and complete models for your option. OEM is offered.

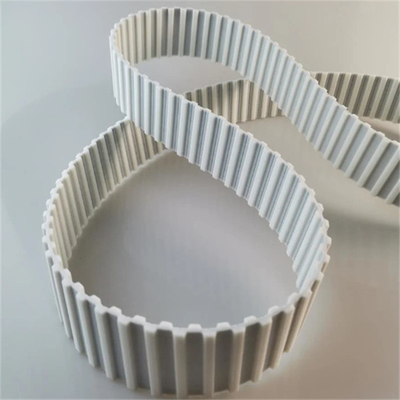

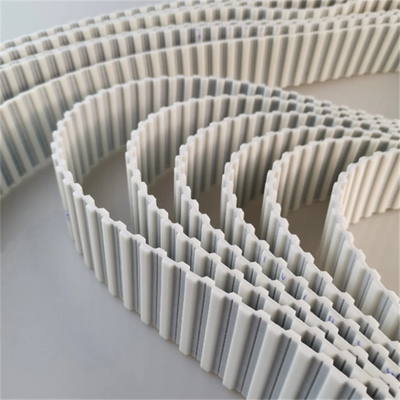

Reference Photos:
