| Color: | White | Materials: | PU |
|---|---|---|---|
| Lifetime: | Long Enough | Samples: | For Free |
| Highlight: | Double Sided Polyurethane Timing Belt,PU Timing Belt with Steel Core,Double Sided PU Timing Belt |
||

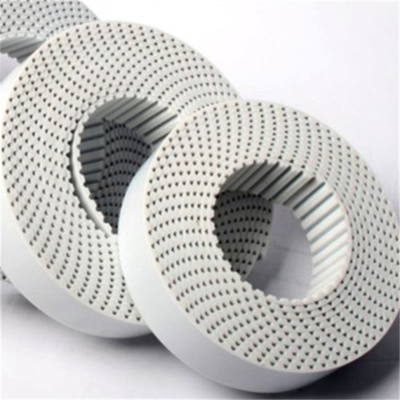

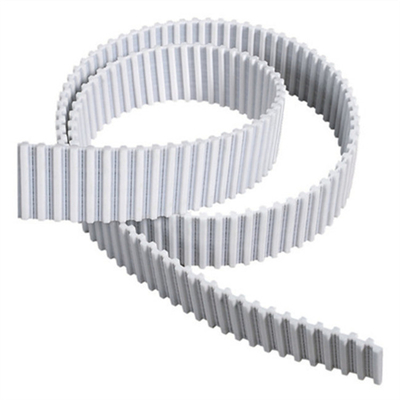

Polyurethane Timing Belts XL/L/H/XH/XXH/T5/T10 Double Sided PU Timing Belt with Steel Core
Open-ended PU timing belts can be connected continuously to any length on the shop floor or directly on the conveyor. It can provide maximum flexibility for transmission and linear displacement.
If required, it is also possible to add friction-reducing, wear-resistant polyamide fabric to the tooth side, or wear-resistant polyamide fabric to the conveyor side. Anti-aging, water-resistant, working temperature -30℃+80℃, can withstand up to +110℃ in a short period of time, resistant to acid, alkali and corrosion.
Technical parameters:
|
Width(mm) |
10 |
16 |
25 |
32 |
50 |
75 |
|
Rated load(mm) |
520 |
1080 |
1650 |
2230 |
3410 |
5120 |
|
Breaking load(mm) |
1870 |
3960 |
6090 |
7800 |
12390 |
17100 |
|
Weight(kg/m) |
0.03 |
0.05 |
0.086 |
0.12 |
0.16 |
0.25 |
Open Ended PU Timing Belt Features:
1. Add cloth to reduce friction coefficient
2. Add PVC to improve corrosion resistance
3. Add glue to improve friction coefficient and heat resistance
4. Add various baffles and blocks to customize them to meet your equipment and product needs.
Classification according to different tooth shapes:
A: Square tooth timing belt (MXLXLLHXHXXHSLmodule belt-1, 1.5, 2, 3, 4, 5)
B: T-shaped tooth timing belt (T2.5T5AT5T10AT10T20AT20)
C: Arc tooth timing belt HTD (2M3M5M8M14M20M)
GT-І(2MR3MR5MR8MR/14MR)
GT-П (1.5GT2GT3GT5GT8YU8MGT14MGT)
D: Semi-circular arc tooth timing belt STPD/STS (S3MS4.5MS5MS8MS14M)
E: Recessed tooth peak timing belt RPP (P3MP5MP8MP14M)
Application areas:
Conveyors, automatic sliding doors and garage opening systems, elevators, automatic handling units, wood industry, textile machinery, glass industry, stone and marble industry, packaging industry, tobacco industry, paper and carton industry, chemical and pharmaceutical industry......
Reference Photos:
