Product Details:
Payment & Shipping Terms:
|
| Europe Standard:: | SPZ, SPA, SPB, SPC V Belt Pulley | Bore: : | Taper Bore Pulley, Polit Bore Pulley |
|---|---|---|---|
| Material:: | Cast Iron G25 | Surface Treatment:: | Phosphating Finished |
| Lettering: : | Laser Typing | ||
| Highlight: | compound tension multi ribbed belt pulley,heavy duty multi ribbed belt pulley |
||
Heavy Duty Compound Tension Multi-Ribbed Belt Pulley
Ribbed Belt Pulley is a pulley used for transmission machinery. Because it uses multiple wedge belts, multi-ribbed belt pulley has better transmission efficiency and driving force than ordinary pulleys. The basic structure of ribbed belt pulley includes a wheel disc and a wedge-shaped belt. The outer diameter, inner diameter and number of teeth of the wheel disc are important reference indicators for the specifications of ribbed belt pulley.
Correct selection, use and maintenance of ribbed belt pulley can effectively improve mechanical transmission efficiency and driving force, while extending the service life of machinery.
Specifications:
|
Europe Standard: |
SPZ, SPA, SPB, SPC V Belt Pulley |
|
Bore: |
Taper bore pulley, Polit Bore pulley |
|
Material: |
Cast Iron G25 |
|
Surface treatment: |
Phosphating finished |
|
Lettering: |
Laser typing |
Advantages:
1. The contact area between the ribbed belt and the belt pulley is larger, so the friction force is larger. The load of the belt pulley will be distributed evenly along the wheel width, so the transmission capacity of the multi-ribbed belt pulley is also very large.
2. The ribbon body of the Ribbed belt is light and thin, and has good flexibility, so it can work normally even on top of a smaller belt pulley.
3. The Belt pulley body itself does not need to be smooth, so it can be used in a pollution-free environment, and it is easy to maintain and has a long service life.
Applications:
Ribbed belt pulley is widely used in the transmission system of mechanical equipment, especially suitable for transmissions that need to withstand high power and high torque, such as:
1. Automobile: multi-ribbed belt pulley can be used in the transmission system of automobile engines to improve the performance and economy of the vehicle.
2. Engineering machinery: multi-ribbed belt pulley can be used in the transmission system of engineering machinery to improve the working efficiency and reliability of the machinery.
3. Ships: multi-ribbed belt pulley can be used in the transmission system of ships to improve the performance and safety of the entire system of the ship.

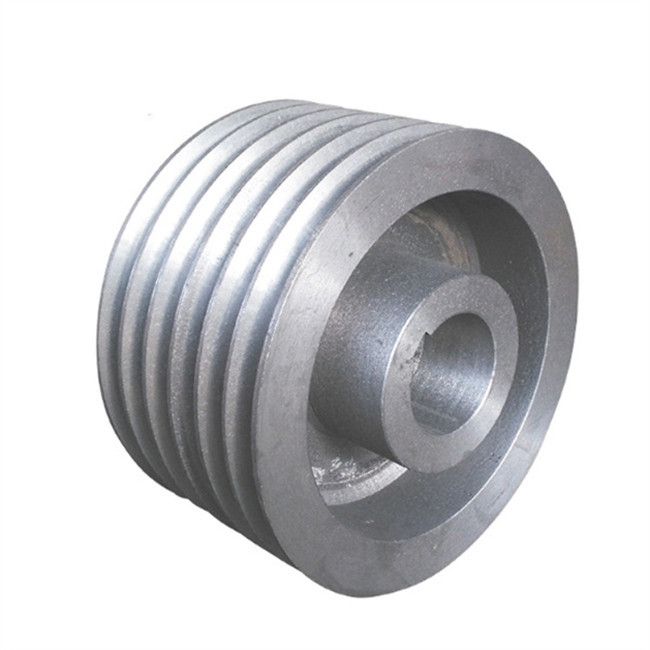

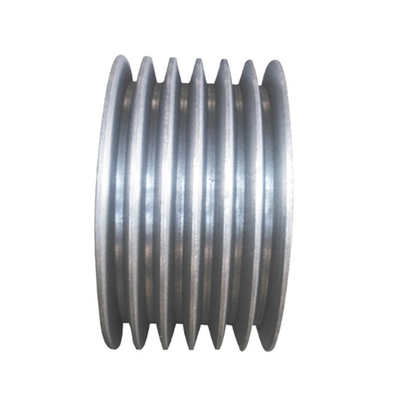

Reference Photos:
