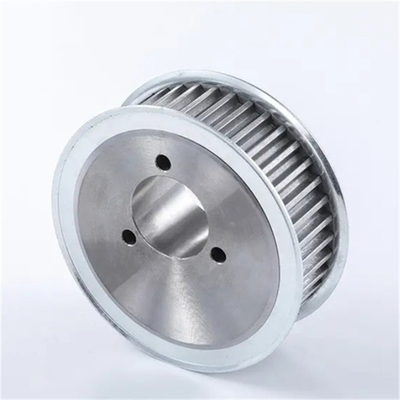

Steel Aluminum Trasmission Parts Synchronous Timing Belt Pulley
Timing belt pulley is a very important component in the mechanical transmission. There are various types of timing belt pulleys, classified by tooth shape, mainly including trapezoidal teeth timing belt pulley and arc teeth timing belt pulley.
When installing the belt pulley, it is necessary to pay attention to some details. For example, when installing the timing belt on the pulley, avoid using too much force or prying with hard objects to avoid damaging the timing belt. If the center distance of two belt pulley can be moved, the center distance should be shortened first, and the center distance should be reset after installing the timing belt. At the same time, it is necessary to ensure that the axis is parallel and that the frame supporting the pulley has sufficient stiffness.
The application of synchronous pulleys is extensive, with the advantages of accurate transmission ratio, no slip, smooth transmission, low noise, large transmission speed ratio range, high allowable linear speed, and high transmission efficiency. Therefore, synchronous pulleys play an important role in various mechanical transmission systems.
Technical parameters:
|
Type |
bw |
hg |
Y+1.5° |
rb |
rt |
2k |
|
MXL |
0.84±0.05 |
0.69 |
20 |
0.35 |
0.13 |
0.508 |
|
XXL |
1.14±0.05 |
0.84 |
25 |
0.35 |
0.30 |
0.508 |
|
XL |
1.32±0.05 |
1.65 |
25 |
0.41 |
0.64 |
0.508 |
|
L |
3.05±0.10 |
2.67 |
20 |
1.19 |
1.17 |
0.706 |
|
H |
4.19±0.13 |
3.05 |
20 |
1.60 |
1.6 |
1.372 |
|
XH |
7.90±0.15 |
7.14 |
20 |
1.98 |
2.39 |
2.794 |
|
XXH |
12.17±0.18 |
10.31 |
20 |
3.96 |
3.18 |
3.048 |
Applications:
Conveyor belts, forklifts, packaging machines, inkjet printers, lifts, freezers, fans, wire cutting machines, printing presses, gripping robots, vending machines, coding machines, punching machines, rewinders and other mechanical equipment.

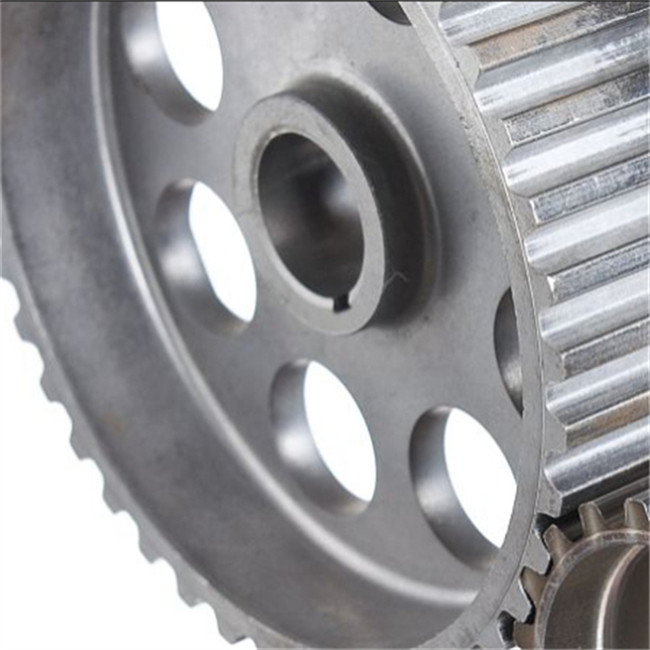

Reference Photos:
