Product Details:
Payment & Shipping Terms:
|
| Product: | Automatic Internal Scraper Self-cleaning Filter | Key Words: | Scraper Self-cleaning Filter |
|---|---|---|---|
| Filter Area (M2): | 0.66m2 | Filtration Precision: | 60 Mesh |
| Filter Element Type: | V-SLOT Gap Type Metal Filter Element, Material 316,304 | Warranty Period: | 1 Year |
| Application: | Water Treatment, Paper Making, Petrochemical, Sanitary, Harmaceutical, Paint, Ink, Grease, Food And Beverage, Etc | ||
| Highlight: | Internal Scraper Self cleaning Filter,Automatic Internal Scraper Filter |
||

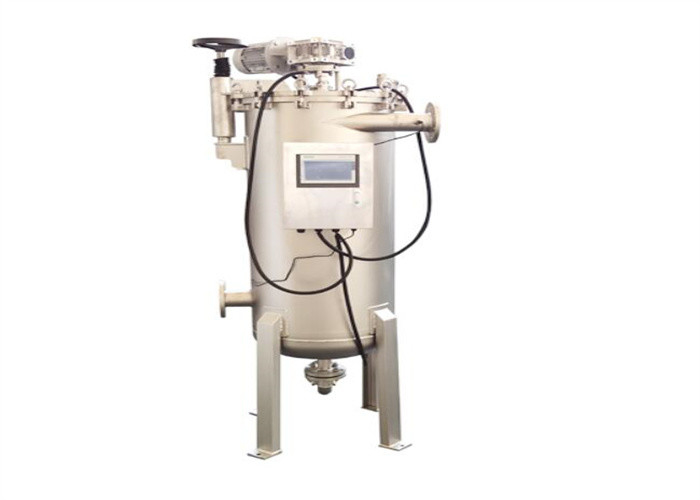

Automatic Internal Scraper Self-cleaning Filter
Internal scraper self-cleaning filter ,it one kind of automatic self-cleaing filter.
The internal scrapper self-cleaning filter, blends modern technology with simplicity to provide a versatilemethod of filtering your process fluids.
This filter can be set up for fully automatic or semi-automated or manual operation.

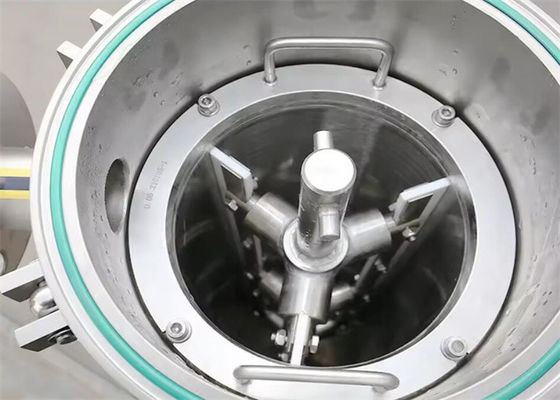

The working principle , Liquid enters the filter body from inlet and flows through the filter element from inside to outside. Impurity is collected onthe internal surface of the wedge wire element. The reducer motor drives scraper blade to remove the impuritycontinously. Cleaning takes place without interruption to flow by the rotation of the element against fixed scraper blades.The impurity accumulated during rotation is deposited into the bottom of the filter body from where it can be periodically discharged automatically via the drain outlet.
Besides,the scraper,filter elements and other parts also avaliable.
Main models of Automatic Internal scraper self-cleaning filter
HT-D219,HT-D273,HT-D325,HT-D377,HT-D400,HT-D450,HT-D550,HT-D800
Application of Automatic Internal scraper self-cleaning filter
wax, kerosene, monomer, polymer,water,citric acid, fermentation liquid, protein, soap, sorbitol, wet end additive, binder,ink, pigment, paint, resin, rubber, ethanol. Chocolate, candy, cooking oil, high temperature oil, juice, coolant, diesel oil
Application Industry for Automatic Internal scraper self-cleaning filter
water treatment, paper making, petrochemical, sanitary, harmaceutical, paint, ink, grease, food and beverage, etc.
Technical for Automatic Internal scraper self-cleaning filter
| Description | Datas |
| Applicable liquids | water and viscous liquids (<800o00cps), impurity content <1000ppm |

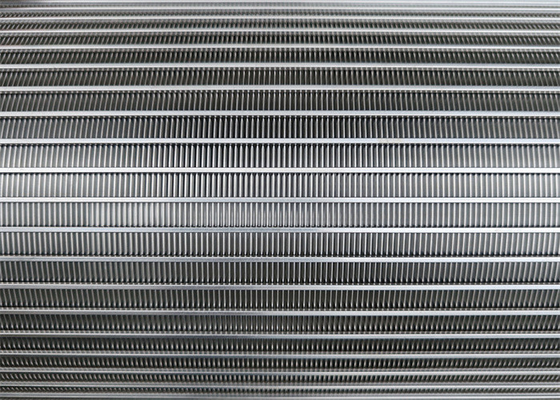

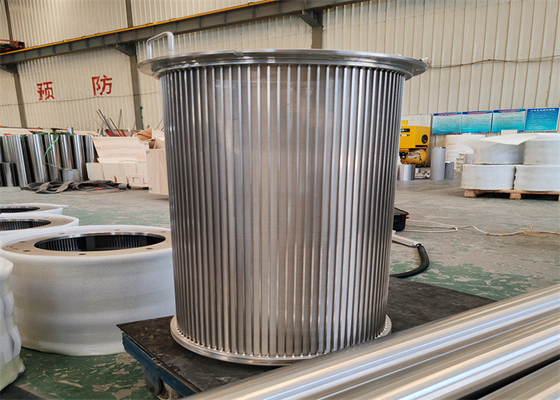

| Filter element type and material | V-SLOT gap type metal filter element, material 316 |
| Filtration precision | 60 mesh, can be determined according to customer requirements |
| Reducer motor | Italian SITI brand 0.55KW reducer (optional: imported or domestic) |
| Import and export connection form | DN80 |
| Casing wetted material | 316 |
| Scraper material | PTFE |
| Shell sealing material | VITON (FKM) fluororubber (the sealing material is determined according to the filter material provided by the customer) |
| Drainage valve | DN80 pneumatic ball valve flange connection |
| Master control box model | Siemens electronic control box (optional: imported or domestic) |

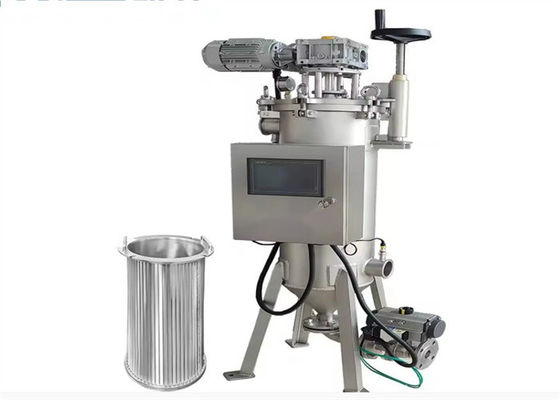

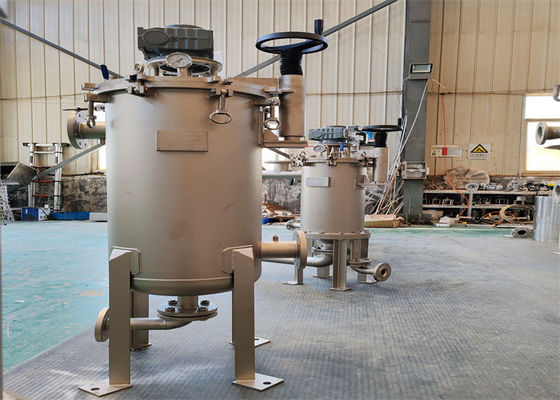

Detail photo of Automatic Internal scraper self-cleaning filter
