Automatic External Scraper Self-Cleaning Filter

External scraper self-cleaning filter,is mainly one type of Automatic Filter in Liquid Filtration. It blends modern technology with simplicity toprovide a versatile method of filtering your processfluids. The filter can be set up for fully or semi-automated or manual operation.

Working principle of Automatic External Scraper Self-Cleaning Filter

liquid enters the filter body frominlet and flows through the filter element fromoutside to inside. Impurity is collected on theexternal surface of the wedge wire element. Thereducer motor drives scraper blade to remove the

impurity continously. Cleaning takes place withoutinterruption to flow by the rotation of the element against fixed scraper blades. The impurityaccumulated during rotation is deposited into thebottom of the filter body from where it can beperiodically discharged automatically via the drainoutlet.

Ideal for processes that require continuous flow,Lehler filters is also suitable for use on unmannedsites and with hazardous process fluids.

Main model of Automatic External Scraper Self-cleaning Filter

HT-D219,HT-D245,HT-D412,HT -D470,HT-D550

Application Industry for Automatic External Scraper Self-cleaning Filter

Oil, Water Treatment,Paper& Pulp,Petrochemical,Fine Chemical Industries, etc

Especial for the high temperature and high viscosityliquid filtration.

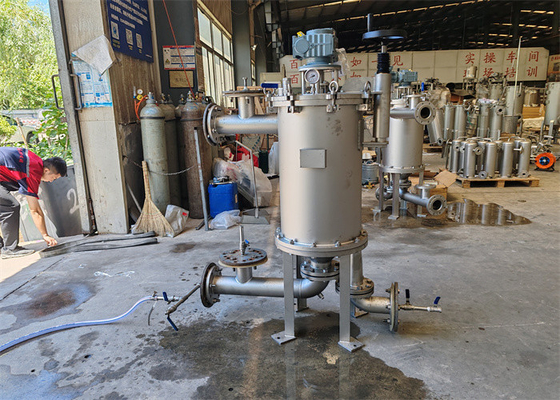

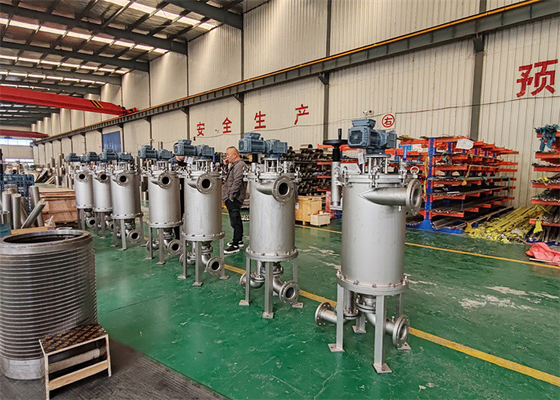

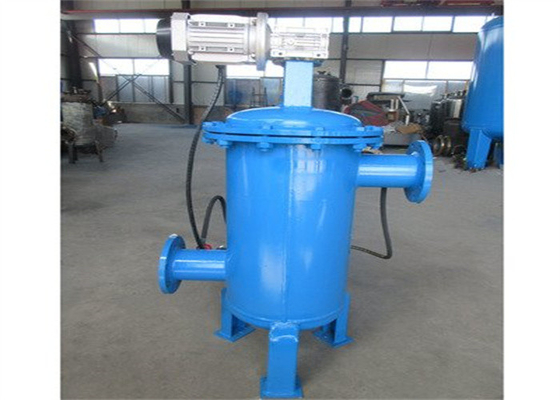

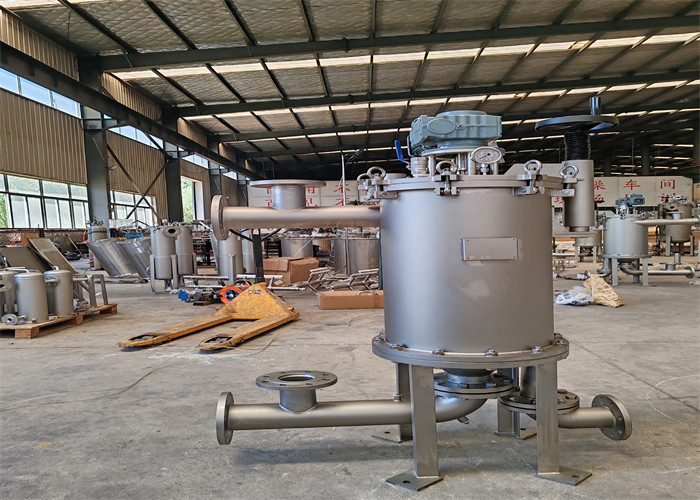

Detail Photos for Automatic External Scraper Self-cleaning Filter
