Product Details:
Payment & Shipping Terms:
|
| Product Name: | Chains Of Continuous Press Machine For MDF And OSB Production | Chains Number: | FB40, FB42 |
|---|---|---|---|
| Application: | Wood-based Panel Continuous Press Machine | Pitch: | 40, 42mm |
| Product: | Chains | Suit Machine: | Machine 4', 6', 8', 9' |
| Highlight: | Continuous Press Machine Chains,MDF Production Chains,OSB Production Chains |
||
Chains of Continuous Press Machine for MDF and OSB Production
Description For Chains Of Continuous Press Machine For MDF And OSB Production:
Dieffenbacher continuous press machine chains: There are two specifications; P22.45 and P22.5 pitches are divided into two structures;
Deffenbacher continuous press machine chains cards and repair parts: model P22.5 or P22.45;
Sinbelcomb continuous press equipment chains model: P40 model; 20-40Mo carbon steel material
Characteristic For Chains Of Continuous Press Machine For MDF And OSB Production:
The left &right cumulative error of the chain can reach the reguired accuracy,which ensures the chain doesnt affect the nommal operation of the press.
Specifications For Chains Of Continuous Press Machine For MDF And OSB Production:
| Chain No. |
Pitch (mm)
P |
Roller Diameter | Inner Width (mm) | Pins | Chain Plate |
U.T.S Lbf |
||||||
|
R1:(max) mm |
R2:(max) Mm |
D | L | X | Y | E1 | E2 | T | ||||
| FB40 | 40 | 20 | 28 | 25 | 14 | 75 | 38 | 53 | 20 | 42 | 5 | 45000 |
| FB42 | 42 | 20 | 28 | 25 | 14 | 75 | 38 | 54 | 20 | 44 | 5 | 45000 |

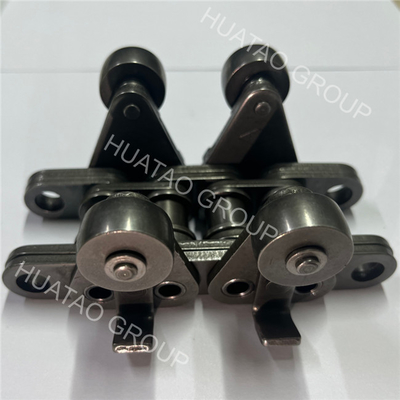

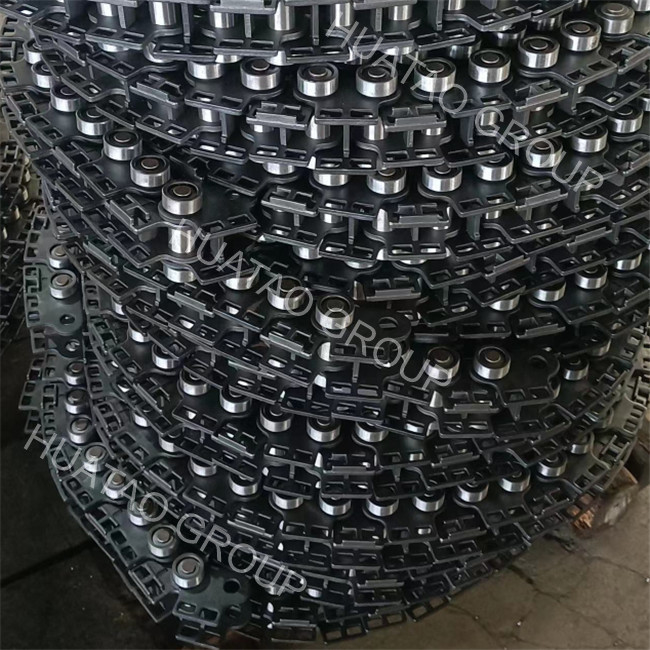

Chains Photos for reference:
Company Intruduction:
HUATAO adheres to the concept of professional technical service to provide high-quality technical services and reliable quality products for the continuous flat press in the wood-based panel industry.
The customized transmission accessories of the continuous press for wood-based panels are mainly: steel belts, rollers, chains, pins, butterfly springs, friction plates, belt roller bearings, etc.
The continuous press (CPS) is the core equipment of the continuous press wood-based panel production line. The continuous flat press can be subdivided into: frame part, hot press plate and heating part, steel belt and drive part, chain blanket and drive part, cylinder part, deviation adjustment system, hydraulic system, electrical control system and other parts.
Principle of continuous press process:
The slab is continuously passed through the hot press plates with different openings set in the length direction of the hot press at a certain speed along with the hot press steel belt, and then the slab with adhesive is pressed to the specified density under the continuous action of temperature and pressure, so that the fiber and adhesive have a bonding effect, so that the fiber is organically combined into a board.
Application of the Transmission Accessories for Continuous Press Machine
The main suppliers of continuous press equipment for wood-based panel boards are Germany's Dieffenbacher and Simbelcamp, and Chinese suppliers include Yalian and Sufoma.
Diefenbach manufacturers mainly provide end customers with production line equipment with press widths of 9 feet, 8.5 feet, 8 feet and other different press lengths.
Simbelcamp mainly provides press widths of 4 feet, 8 feet, 9 feet, etc. 4 feet mainly has two specifications of presses with effective lengths of 33.8 meters and 38.7 meters: 8 feet and 9 feet press lengths are divided into many different lengths; wide-width presses have different specifications according to customer requirements.
