Product Details:
Payment & Shipping Terms:
|
| Product Name: | Roller Bars For Wood Based Panel Continuous Press Machine | Straightness: | ≤0.1/1000mm |
|---|---|---|---|
| Application: | Wood-based Panel Continuous Press Machine | Roundness: | ≤0.005mm |
| Surface Roughness: | Ra≤0.4μm | Surface Hardness: | 50-55 HRC |
| Depth: | >1 . 2mm | Material: | GCr15 |
| Highlight: | Wood Based Panels Machinery Roller Bars,Wood Based Panel Machinery Roller Bars,Wood Based Panel Production Roller Bars |
||
Roller Bars for Wood Based Panel Continuous Press Machine
Description For Roller Bars for Wood Based Panel Continuous Press Machine:
The specifications of Dieffenbacher press roller bar are mainly: φ 21, diameter and length are 3000mm2848mm2700mm according to the width of the press;
The specifications of Simbelcom press roller bar are: 4 feet is 1498mm*18, which is a common model; 8 feet has 2698mm*φ18 and 2848mm*18; the roller material is mainly Cr15 bearing steel; It can also be made of 50crva spring steel;
Characteristic For Roller Bars for Wood Based Panel Continuous Press Machine:
The roller bar is treated stably by patented technology and does not deform under long-term work at a high temperature of 250℃.
Specifciations For Roller Bars for Wood Based Panel Continuous Press Machine:
| D1 | D2 | L1 | L2 | Straightness | Roundness | Surface Roughness | Surface Hardness | Depth | Material |
| 15-25mm | 5-10mm | L1≤3000mm | ≤150mm | ≤0.1/1000mm | ≤0.005mm |
Ra≤0.4μm
|
50-55 HRC | >1 . 2mm |
GCr15
|

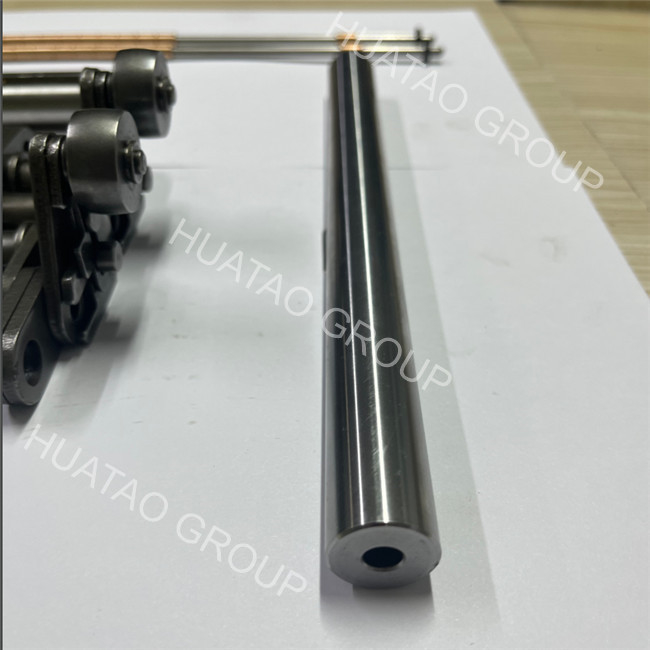

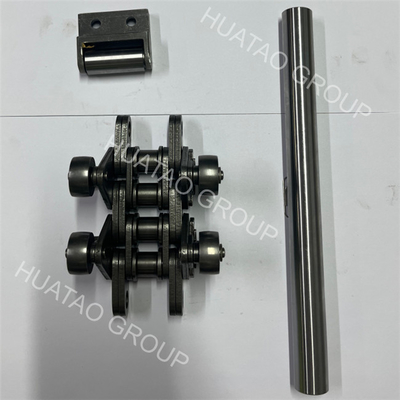

Roller Bar Photos for reference:
Company Intruduction:
HUATAO adheres to the concept of professional technical service to provide high-quality technical services and reliable quality products for the continuous flat press in the wood-based panel industry.
The customized transmission accessories of the continuous press for wood-based panels are mainly: steel belts, rollers, chains, pins, butterfly springs, friction plates, belt roller bearings, etc.
The continuous press (CPS) is the core equipment of the continuous press wood-based panel production line. The continuous flat press can be subdivided into: frame part, hot press plate and heating part, steel belt and drive part, chain blanket and drive part, cylinder part, deviation adjustment system, hydraulic system, electrical control system and other parts.
Principle of continuous press process:
The slab is continuously passed through the hot press plates with different openings set in the length direction of the hot press at a certain speed along with the hot press steel belt, and then the slab with adhesive is pressed to the specified density under the continuous action of temperature and pressure, so that the fiber and adhesive have a bonding effect, so that the fiber is organically combined into a board.
Application of the Transmission Accessories for Continuous Press Machine
The main suppliers of continuous press equipment for wood-based panel boards are Germany's Dieffenbacher and Simbelcamp, and Chinese suppliers include Yalian and Sufoma.
Diefenbach manufacturers mainly provide end customers with production line equipment with press widths of 9 feet, 8.5 feet, 8 feet and other different press lengths.
Simbelcamp mainly provides press widths of 4 feet, 8 feet, 9 feet, etc. 4 feet mainly has two specifications of presses with effective lengths of 33.8 meters and 38.7 meters: 8 feet and 9 feet press lengths are divided into many different lengths; wide-width presses have different specifications according to customer requirements.
