ZSY500 Hard Tooth Gearboxes For Glue Breaker

ZSY500 Hard Tooth Gearboxes For Glue Breaker
ZSY500 Hard Tooth Gearboxes For Glue Breaker
video play

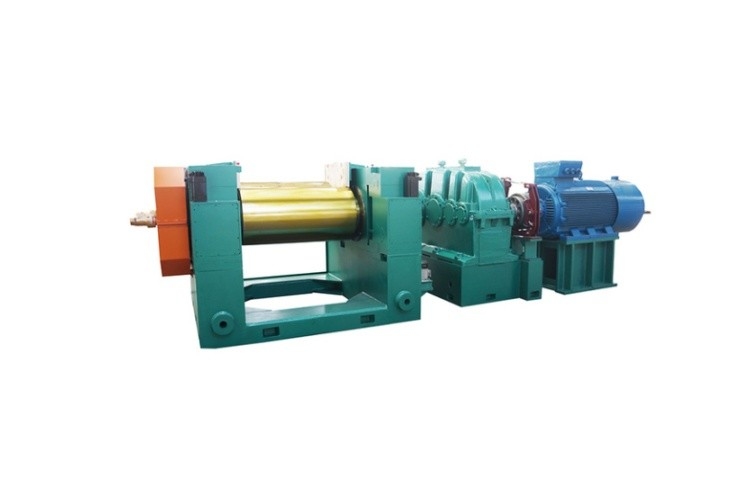

Large Image :  ZSY500 Hard Tooth Gearboxes For Glue Breaker

Product Details:
Place of Origin: China
Brand Name: HT
Certification: ISO9001, CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 8000-15000USD/set
Packaging Details: Wooden case
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 sets/ month
Detailed Product Description
Product Nmae: ZSY500 Hard Tooth Gearboxes For Glue Breaker Lubricant: Oil-Bath And Splash Lubrication
Installation Form: Horizontal Or Vertical Shell Material: Cast Iron
Color: As Per Request Toothed Portion Shape: Bevel Helical
Highlight:

Hard Tooth Gearboxes

,

Glue Breaker Hard Tooth Gearboxes

,

Hard Tooth Gearboxes For Glue Breaker

ZSY500 Hard Tooth Gearboxes For Glue Breaker

Description For ZSY500 Hard Tooth Gearboxes For Glue Breaker:
ZSY series is a kind of hard tooth gearbox produced according to JB/T8853-2001. Its shafts are assembled parallel. They are widely used in mining, metallurgy, lifting, transportation, cement, building, painting, pharmaceutical industries, textile, chemical industry.

Features of ZSY500 Hard Tooth Gearboxes For Glue Breaker:
1. The gears are all made of high quality low carbon alloy steel by normalizing and carburizing. The hardness of the gears reaches HRC58-62. The gears are all grinded with high precision and good contact.
2. High transmission efficiency: single stage's efficiency is more than 96.5%, double stage's more than 93%, three stage's more than 90%
3. This series reduction gearbox has small size, light weight, large bearing capacity, longer life.
4. High stability, stable operation, low noise.
5. The main parameters, such as center distance and transmission ratio, have been optimized, and the main parts have good interchangeability, easy disassembly and installation.
6. Generally, oil pool lubrication and natural cooling are used. When the thermal power is insufficient, circulating oil lubrication or fan and cooling plate can be used for cooling.

Conditions when using ZSY500 Hard Tooth Gearboxes For Glue Breaker:
1. Input speed of high speed shaft of reducer is not more than 1500r / min
2. The peripheral speed of reducer's gear shall not be more than 20 m / s.
3.The working environment temperature of the reducer is - 40 ~ + 50 ºC. When the temperature is lower than 0 ºC, the lubricating oil need to be preheated to above 0 ºC before starting.
4. The reducer can operate in both positive and negative directions.

Other Models
ZSY single stage:160,180,200,224,250,280,315,355,400,450,500,560,630,710.


Application of ZSY500 Hard Tooth Gearboxes For Glue Breaker:

Used for various tire enterprises.

ZSY500 Hard Tooth Gearboxes For Glue Breaker 0

FAQ:


1. Can you customize according to our requirements?
Yes, we can design nonstandard products according to customer's drawing and sample.

2.What 's your product range?
speed reducer,gearbox,gear motor,pump,crusher

3. Reason why we buy from you?
Wth over 20 years of production experience and credibility. With professional engineer team, advanced technology production and skilled workers.Specialized in the production of reducer. Map sample processing business can be undertaken.





Our gearboxes included Industrial Standard Gearboxes, Gearboxes for Mining, Gearboxesfor Metallurgy,Gearboxes for Petro Chemical, Gearboxes for Wind Energy, Gearboxes for Rubber and Plastics. Our Gearboxes are widely used as Metallurgy rolling mill roller drive. Plastic Film Roller Drive etc Industrial Rollers. They are equipped with excellent quality bearings and Gears. We supply quality electric motors for our gearboxes as well.
