Product Details:
Payment & Shipping Terms:
|

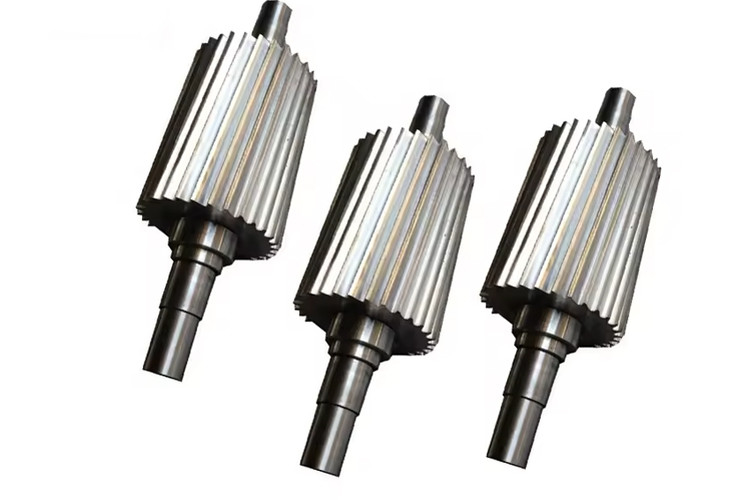

| Product Name: | Plastic Grinding Pelletizer Blades For Waste Plastic Granulator Machine | Advantage: | Wear Resistant, Sharp |
|---|---|---|---|
| Material: | ALLOY STEEL | Type: | Rolling Pelletizer Knife |
| Dimension: | Customized | Application: | Granulator Machinery Blades |
| Highlight: | Waste Plastic Grinding Pelletizer Blades,Plastic Grinding Pelletizer Blades,Waste Plastic Granulator Machine Blades |
||

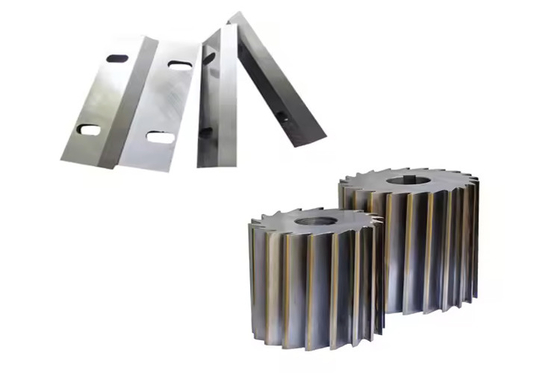

Pelletizer blade is mainly used in recycling processing for pelletizing plastic such as PE, PP, PVC, PS, ABS, AS etc. It is one of the most important parts of pelletizer machine to prill plastic particle. They are made out of different materials depending on cutting application.
Standard materials: SKD-11,Cr12MoV,6CrW2Si,9CrSi
Designs: Solid Tool Steel, Tungsten Carbide Inserted
Application: grinder, shredder, and crusher machine
| Specification | Technical specifications | Material | |||
| Outer diameter | Inside diameter | Length | Cutter tooth number |
High-speed tool steel W18Cr4V Cr12MoV Cemented carbide YG8 YG10A YG6X etc. |
|
| KeyWord | Pelletiziling Knife | ||||
| φ100*φ130*100 | φ100 | φ130 | 100 | 14 | |
| φ100*φ50*100 | φ100 | φ50 | 100 | 14 | |
| φ100*φ40*100 | φ100 | φ40 | 100 | 14 | |
| φ140*φ40*140 | φ140 | φ40 | 140 | 18 | |
| φ160*φ50*160 | φ160 | φ50 | 160 | 22 | |
| φ160*φ50*200 | φ160 | φ50 | 200 | 22 | |
| φ180*φ50*180 | φ180 | φ50 | 180 | 26 | |
| φ180*φ100*180 | φ180 | φ100 | 180 | 26 | |
| φ180*φ100*200 | φ180 | φ100 | 200 | 26 | |
| φ200*φ130*100 | φ200 | φ130 | 100 | 32 | |
| φ200*φ75*200 | φ200 | φ75 | 200 | 32 | |
| φ200*φ130*200 | φ200 | φ130 | 200 | 32 | |
Granulator knife Characteristics:

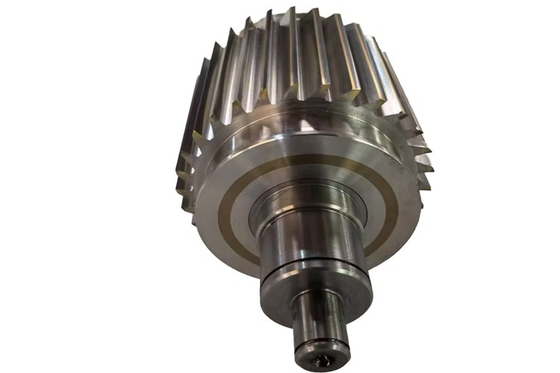

Solid steel plastic pelletizer knife:
