| Material: | TC,HSS,Alloy,9CrSi,SKD11, | Hardness: | 52-65HRC |
|---|---|---|---|
| Thickness: | ± 0.0010mm | Parallelism: | 0.002mm |
| Flatness: | 0.002mm | Dimension Tolerance: | OD±0.03mm, IDH7-H8 Usually, Thickness ±0.002mm |
| Surface Roughness: | Ra 0.2- Ra0.4 Usually | ||
| Highlight: | 52-65HRC Metal Slitting Blade,Metal Slitting Blade |
||

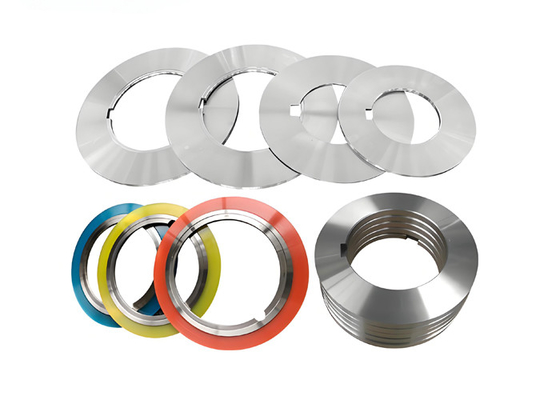

Metal Slitting Blade with Hardness in 52-65HRC used for coil center slitting line
Huatao was founded in 2008. Since its establishment, it has been committed to providing customers with high-quality Metal Slitting Blade with Hardness in 52-65HRC used for coil center slitting line. As a leading company in the industry, Huatao is constantly pursuing technological innovation and product quality improvement. The company's main industry knives are widely used in the below industry:
1. Metal Slitting and Shearing
2. Lithium Battery Slitting and cutting
3. Wood processing chip
3. Recycling Material's shredding
Focus providing reliable tool support for various processing companies. Through years of development, Huatao has not only accumulated rich production experience, but also cultivated a professional team with superb technology and thoughtful service. In the future, Huatao will continue to uphold the business philosophy of "quality first, customer first", continuously expand the market, and strive to create greater value for customers.
Production Description:
We offer the best-suited and successful grades Metal Slitting Blade with Hardness in 52-65HRC used for coil center slitting line HSLA, AHSLA, Duplex, stainless steels, nickel alloys, copper, brass, titanium, indium aluminum, hot rolled steels, phosph, bronze, clad, and laminated metals
Grinding: Processing the shearing blade to specification in the final grinding step.
Our Top Slitter Baldes and Circular Slitting Blade for transformer core production manufactured using high-quality materials, including Tungsten Carbide and Tooling steels such as Cr12Mov, 6CrW2Si, D2, SKD11, SKD61, H13, H13K, HMB, HMK, and more. These materials ensure durability and longevity, allowing you to achieve precise and clean cuts every time.
| Item | OD*ID*T mm | Item | OD*ID*T mm |
| 1 | φ95*φ55*2 | 10 | φ240*φ120*10 |
| 2 | φ105*φ32*3 | 11 | φ260*φ120*10 |
| 3 | φ105*φ52*5 | 12 | φ280*φ160*10 |
| 4 | φ120*φ60*5 | 13 | φ300*φ180*10 |
| 5 | φ160*φ80*5 | 14 | φ320*φ200*10 |
| 6 | φ200*φ100*5 | 15 | φ330*φ200*10 |
| 7 | φ210*φ100*5 | 16 | φ360*φ220*10 |
| 8 | φ220*φ100*5 | 17 | φ380*φ240*10 |
| 9 | φ220*φ120*5 | 18 | φ400*φ260*10 |
|
Keyword:Transformer core Roll slitting Carbide Knives with Tungsten raw material These are only some typical sizes. More are available. Please contact us for further information. |
|||
Our blade Advantage:
1.The surface roughness of Top Slitter Baldes and Circular Slitting Blade for transformer core production should be less than 0.002mm,
2.The flatness and parallelism should be less than 0.001mm.
3.The inner hole of the blade should be +0.03mm to +0.05mm.
4.The concentricity of the outer circle of the cutting edge is 0.005mm.
5.The heat treatment hardness of the blade should be determined according to the material of the Transformer core Roll slitting Carbide Knives and the material and thickness of the cutting material.
6.Heat treatment method: vacuum deoxidation treatment and salt bath furnace treatment.
