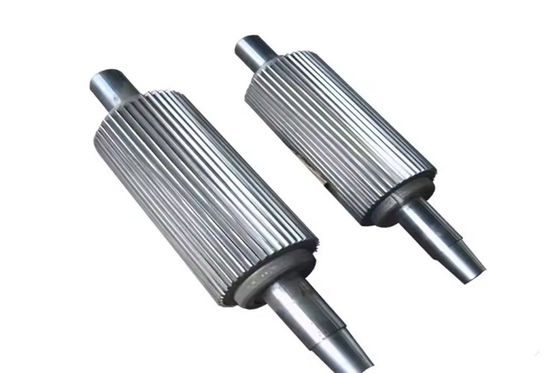

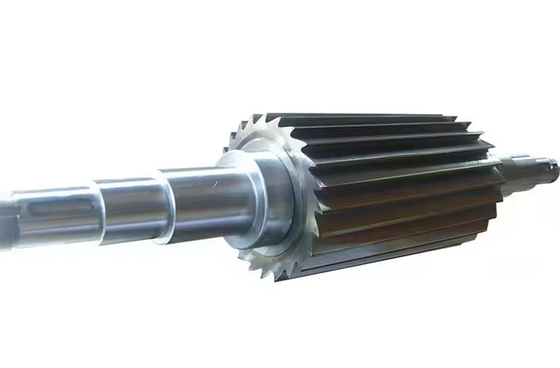

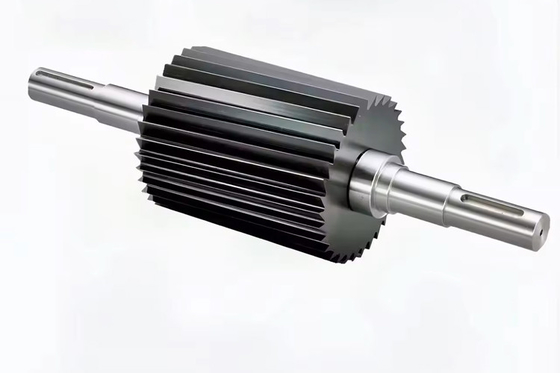

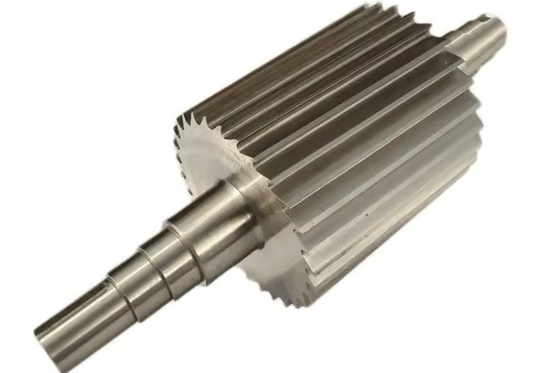

Customized High Quality Alloy Rotary Pelletizing Knife For The Waste Plastic Cutting

Large Image : Customized High Quality Alloy Rotary Pelletizing Knife For The Waste Plastic Cutting

Product Details:

Place of Origin:	China
Brand Name:	Huatao
Model Number:	HT-Pelletiziling Knife

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	100-1500USD/pc
Packaging Details:	Wooden Box
Delivery Time:	10-20 DAYS
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	10 pieces per week

Contact Now

Detailed Product Description

Material:

ALLOY STEEL

Advantage:

Wear Resistant, Sharp

Type:

Rolling Pelletizer Knife

Application:

Granulator Machinery Blades

Highlight:

Alloy Rotary Pelletizing Knife

Waste Plastic Cutting Rotary Pelletizing Knife

Customized Rotary Pelletizing Knife

Customized High Quality Alloy Rotary Pelletizing Knife For The Waste Plastic Cutting

Granulator Blade Description:
When selecting rolling pelletizer blade, it is important to consider factors such as the chemical composition of the blade material and any specific requirements from the user. The blade angle should be chosen carefully to ensure both sharpness and sufficient strength, avoiding any chipping issues during use. Achieving the right hardness and minimizing internal stress in the blade requires a proper heat treatment process. This ensures that the blade maintains its shape and does not deform during operation. By taking these considerations into account, the rolling pelletizer blades can deliver optimal performance, durability, and reliability.
The hob of the Granulator Blade needs to choose the chemical composition of the blade material to meet the different needs of users and cut different objects.
It needs a suitable blade angle to maintain the sharpness of the blade and make the blade have a certain strength without chipping during use.
It needs a good heat treatment process to achieve the suitable hardness and small internal stress of the blade, and it will not be deformed during use.
Customized High Quality Alloy Rotary Pelletizing Knife For The Waste Plastic Cutting 0

Granulator Blade Specification:

Specification	Technical specifications				Material
Specification	Outer diameter	Inside diameter	Length	Cutter tooth number	High-speed tool steel W18Cr4V Cr12MoV Cemented carbide YG8 YG10A YG6X etc.
Keyword	Pelletiziling Knife
φ100φ130100	φ100	φ130	100	14
φ100φ50100	φ100	φ50	100	14
φ100φ40100	φ100	φ40	100	14
φ140φ40140	φ140	φ40	140	18
φ160φ50160	φ160	φ50	160	22
φ160φ50200	φ160	φ50	200	22
φ180φ50180	φ180	φ50	180	26
φ180φ100180	φ180	φ100	180	26
φ180φ100200	φ180	φ100	200	26
φ200φ130100	φ200	φ130	100	32
φ200φ75200	φ200	φ75	200	32
φ200φ130200	φ200	φ130	200	32

Application of Pelletizer Blades
Pelletizer blade is installed in pelletizer machine to prilling plastic particle.
Pelletizer blade consists of stationary knife and prilling hob, generally for one stationary knife with one prilling hob.
Prilling hob has solid and inlaid hob blade types.

Tag:

Contact Person: Maple

Tel: +86 15103371897

Fax: 86--311-80690567
